Transair® Stainless Steel Pipe and Fittings
Diameter: 2"(60mm)
TransairPipeSales.com is your complete source for Transair 2" Pipe and Fittings. Transair® 2" Pipe and fittings are quick and easy to install.
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
Note: California residents click here for Proposition 65 information
WARNING:
These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm.
For more information go to www.p65Warnings.ca.gov
• Stainless Steel Pipe
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Plug-In Reducers
• Male NPT Threaded Adapter
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Plug-In Reducers
• Male NPT Threaded Adapter
Stainless Steel Pipe
2" (60mm) Pipe - 20ft
Click For Larger View
Click For Larger View
Product #: TX16 M6 00
øD (in): 2
øD (mm): 60
L (ft): 20'
Weight (lb): 31.1
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
øD (in): 2
øD (mm): 60
L (ft): 20'
Weight (lb): 31.1
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
 |
|||||
 |
|||||
➤ Back to Top
2" Connectors
90° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RP02 M6 01
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 5.47
Z (in): 2.17
Weight (lb): 1.82
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 5.47
Z (in): 2.17
Weight (lb): 1.82
|
|||||
|
|||||
Product #: RP02 M6 02
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 5.47
Z (in): 2.52
Weight (lb): 1.82
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 5.47
Z (in): 2.52
Weight (lb): 1.82
|
|||||
|
|||||
➤ Back to Top
45° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RX12 M6 00
øD (in): 2
øD (mm): 60
L1 (in): 11.81
L2 (in): 6.57
Weight (lb): 1.17
øD (in): 2
øD (mm): 60
L1 (in): 11.81
L2 (in): 6.57
Weight (lb): 1.17
|
|||||
|
|||||
Use 2 connectors RP06 to connect elbow RX12 to Transair® stainless steel pipe.
➤ Back to Top

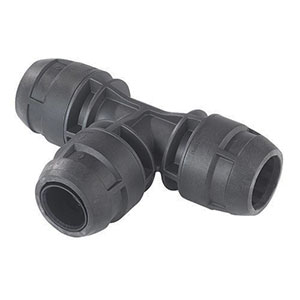

Equal Tees
Click For Larger View
Click For Larger View
Product #: RP04 M6 01
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 10.98
Z1 (in): 2.52
Z2 (in): 2.52
Weight (lb): 2.65
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 10.98
Z1 (in): 2.52
Z2 (in): 2.52
Weight (lb): 2.65
|
|||||
|
|||||
Product #: RP04 M6 02
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 10.98
Z1 (in): 2.52
Z2 (in): 2.52
Weight (lb): 2.65
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 10.98
Z1 (in): 2.52
Z2 (in): 2.52
Weight (lb): 2.65
|
|||||
|
|||||
➤ Back to Top
Pipe-to-Pipe Connectors (Unions)
Click For Larger View
Click For Larger View
Product #: RP06 M6 01
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 6.14
Z (in): 0.10
Weight (lb): 1.45
Seal: EPDM
øD (in): 2
øD (mm): 60
L (in): 6.14
Z (in): 0.10
Weight (lb): 1.45
|
|||||
|
|||||
Product #: RP06 M6 02
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 6.14
Z (in): 0.10
Weight (lb): 1.45
Seal: FKM
øD (in): 2
øD (mm): 60
L (in): 6.14
Z (in): 0.10
Weight (lb): 1.45
|
|||||
|
|||||
➤ Back to Top

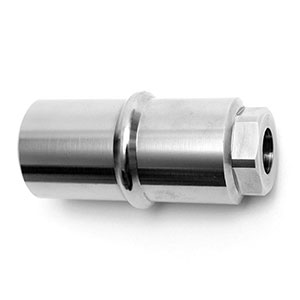

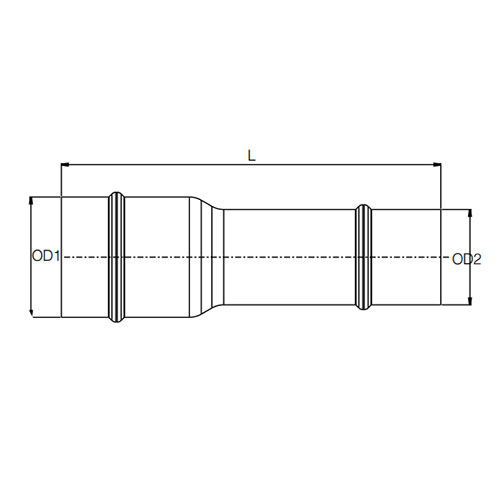

Plug-In Reducers
Click For Larger View
Click For Larger View
Product #: RX66 M6 M4
øD1 (in): 2
øD1 (mm): 60
øD2 (in): 1½
øD2 (mm): 42
L (in): 8.66
Weight (lb): 0.83
øD1 (in): 2
øD1 (mm): 60
øD2 (in): 1½
øD2 (mm): 42
L (in): 8.66
Weight (lb): 0.83
|
|||||
|
|||||

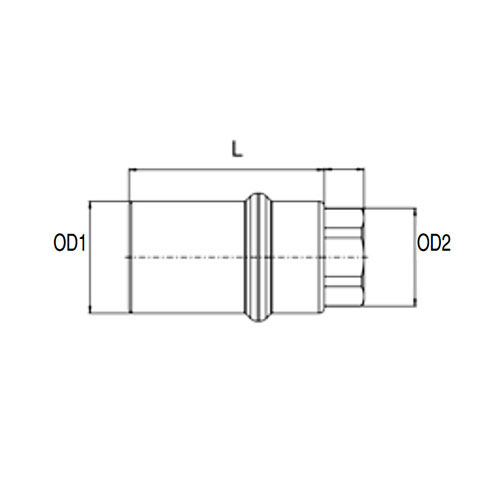

Female Threaded NPT Plug-In Reducer
Click For Larger View
Click For Larger View
Product #: RR65 M4N06
øD (in): 2
øD (mm): 60
Thread Size (in): ¾
L (in): 3.62
Weight (lb): 2.20
øD (in): 2
øD (mm): 60
Thread Size (in): ¾
L (in): 3.62
Weight (lb): 2.20
|
|||||
|
|||||
Product #: RR65 M4N08
øD (in): 2
øD (mm): 60
Thread Size (in): 1
L (in): 3.62
Weight (lb): 1.87
øD (in): 2
øD (mm): 60
Thread Size (in): 1
L (in): 3.62
Weight (lb): 1.87
|
|||||
|
|||||
➤ Back to Top
End Caps
Click For Larger View
Click For Larger View
Product #: RR25 M6 00
øD (in): 2
øD (mm): 60
L (in): 3.35
Weight (lb): 1.59
øD (in): 2
øD (mm): 60
L (in): 3.35
Weight (lb): 1.59
|
|||||
|
|||||
➤ Back to Top
Male Threaded NPT Adapter
Click For Larger View
Click For Larger View
Product #: RR05 M6N06
øD (in): 2
øD (mm): 60
Thread Size (in): ¾
L (in): 4.61
Z (in): 0.81
Weight (lb): 2.22
øD (in): 2
øD (mm): 60
Thread Size (in): ¾
L (in): 4.61
Z (in): 0.81
Weight (lb): 2.22
|
|||||
|
|||||
Product #: RR05 M6N16
øD (in): 2
øD (mm): 60
Thread Size (in): 2
L (in): 7.56
Z (in): 0.87
Weight (lb): 3.94
øD (in): 2
øD (mm): 60
Thread Size (in): 2
L (in): 7.56
Z (in): 0.87
Weight (lb): 3.94
|
|||||
|
|||||
Product #: RR05 M6N20
øD (in): 2
øD (mm): 60
Thread Size (in): 2½
L (in): 7.68
Z (in): 0.87
Weight (lb): 2.69
øD (in): 2
øD (mm): 60
Thread Size (in): 2½
L (in): 7.68
Z (in): 0.87
Weight (lb): 2.69
|
|||||
|
|||||
➤ Back to Top

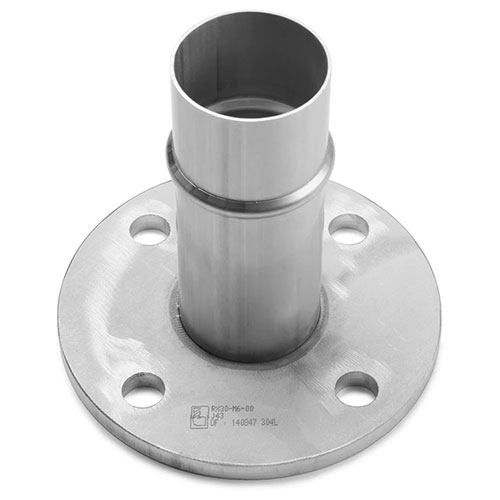

Flange Adapter
Click For Larger View
Click For Larger View
Product #: RX30 M6 00
øD (in): 2
øD (mm): 60
Standard: DIN
D1 (in): 6.5
D2 (in): 4.92
D3 (in): 0.71
L (in): 5.55
Weight (lb): 3.75
øD (in): 2
øD (mm): 60
Standard: DIN
D1 (in): 6.5
D2 (in): 4.92
D3 (in): 0.71
L (in): 5.55
Weight (lb): 3.75
|
|||||
|
|||||

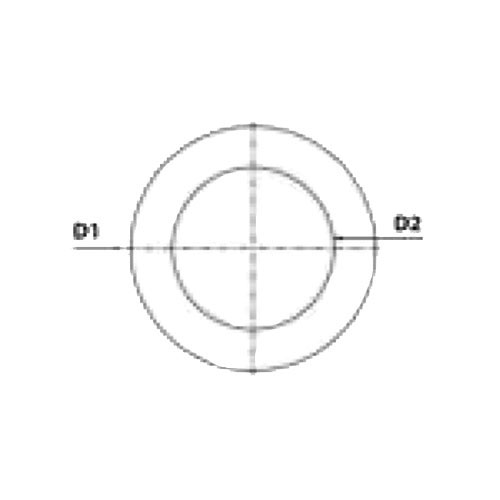

EPDM Gasket
Click For Larger View
Click For Larger View
Product #: EW05 M6 01
øD (in): 2
øD (mm): 60
For Use with: RX30 M6 00
øD (in): 2
øD (mm): 60
For Use with: RX30 M6 00
|
|||||
|
|||||
BOLT KIT PART NO.: EW06 00 03 | MAX. TIGHTENING TORQUE (FT-LBS): 147.51
➤ Back to Top

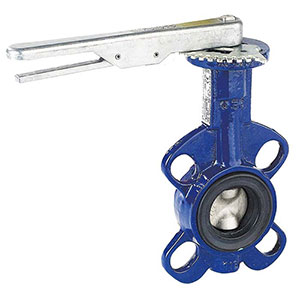

Butterfly Valves
Click For Larger View
Click For Larger View
Product #: VR02 M6 01
Seal: EPDM
Standard Flange: DIN
øD (in): 2
øD (mm): 60
Number of Lugs: 4
Weight (lb): 4.63
Bolt part #: EW06 00 03
Flange part #: RX30 M6 00
Seal: EPDM
Standard Flange: DIN
øD (in): 2
øD (mm): 60
Number of Lugs: 4
Weight (lb): 4.63
Bolt part #: EW06 00 03
Flange part #: RX30 M6 00
|
|||||
|
|||||
Product #: VR02 M6 02
Seal: FKM
Standard Flange: DIN
øD (in): 2
øD (mm): 60
Number of Lugs: 4
Weight (lb): 4.63
Bolt part #: EW06 00 03
Flange part #: RX30 M6 00
Seal: FKM
Standard Flange: DIN
øD (in): 2
øD (mm): 60
Number of Lugs: 4
Weight (lb): 4.63
Bolt part #: EW06 00 03
Flange part #: RX30 M6 00
|
|||||
|
|||||
EW06 bolt kits are not supplied for valve/flanges assembly. The butterfly valves do not require additional ring when connected to circular flanges
MAX. TIGHTENING TORQUE (FT-LBS): 36.88
➤ Back to Top
Fixture Accessories

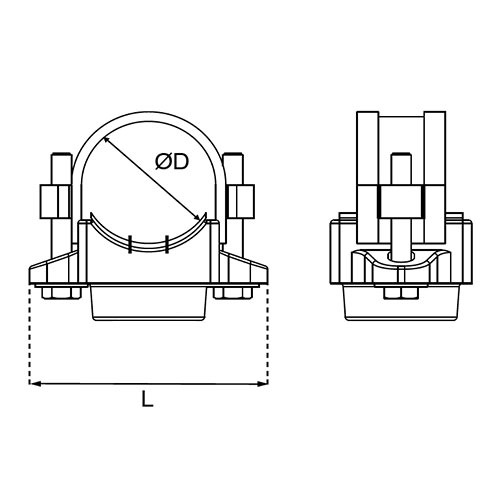

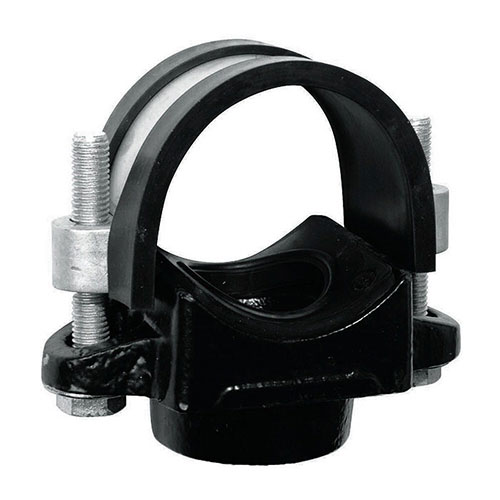

Quick Assembly Direct Feed Bracket
Click For Larger View
Click For Larger View
Product #: RR89 M6N06 01
Seal: EPDM
ØD (in): 2
ØD (mm): 60
L (in): 4.61
Weight (lbs): 1.99
Seal: EPDM
ØD (in): 2
ØD (mm): 60
L (in): 4.61
Weight (lbs): 1.99
|
|||||
|
|||||
Product #: RR89 M6N06 02
Seal: FKM
ØD (in): 2
ØD (mm): 60
L (in): 4.61
Weight (lbs): 1.99
Seal: FKM
ØD (in): 2
ØD (mm): 60
L (in): 4.61
Weight (lbs): 1.99
|
|||||
|
|||||
➤ Back to Top

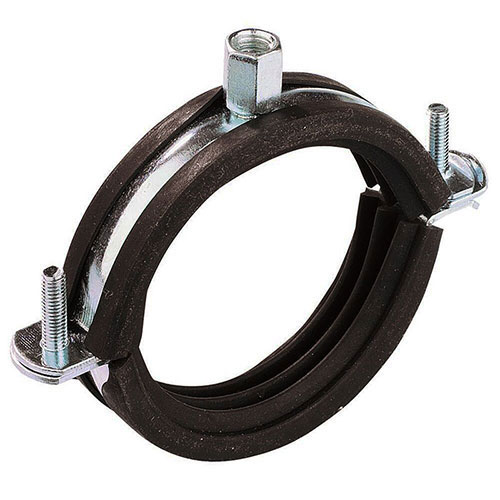

Fixing Clip for Stainless Steel Pipe
Click For Larger View
Click For Larger View
Product #: ER01 M6 01
ØD (in): 2
ØD (mm): 60
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
ØD (in): 2
ØD (mm): 60
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
|
|||||
|
|||||
➤ Back to Top
