Transair Aluminum Pipe and Fittings
Diameter: 1"(25mm)

TransairPipeSales.com is your complete source for Transair 1" Pipe and Fittings. Transair 1" Pipe and fittings are quick and easy to install.
➤ Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
Quick Menu
  • Aluminum Pipe
  • Flexible Hose
  • 90° Pipe to Pipe Elbows
  • 45° Pipe to Pipe Elbows
  • Male NPT Threaded 90° Elbows
  • Male NPT Threaded 45° Elbows
  • Male NPT Threaded Connectors
  • NPT Threaded Pipe Adapters
  • Equal Tees
  • Pipe-to-Pipe (Unions)

  • Male Stud Nuts
  • Simple Reducing Brackets
  • NPT Simple Reducing Brackets
  • Quick Assembly Brackets
  • Fixing Clip
  • Wall Brackets
  • Wall Brackets w/ Ball Valves
  • Valves
  • Vented End Caps
  • 4 & 6 Port Mainfolds

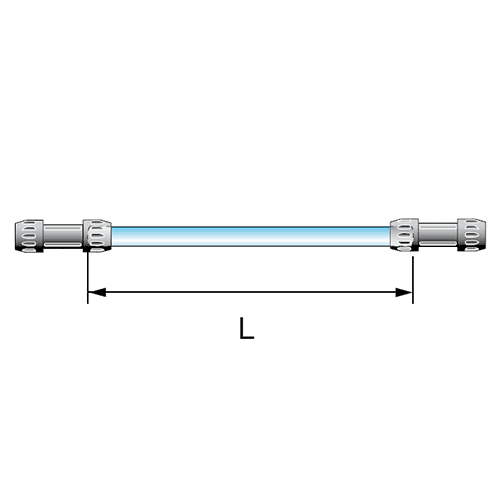

    • 25mm Transair

    Aluminum Pipe

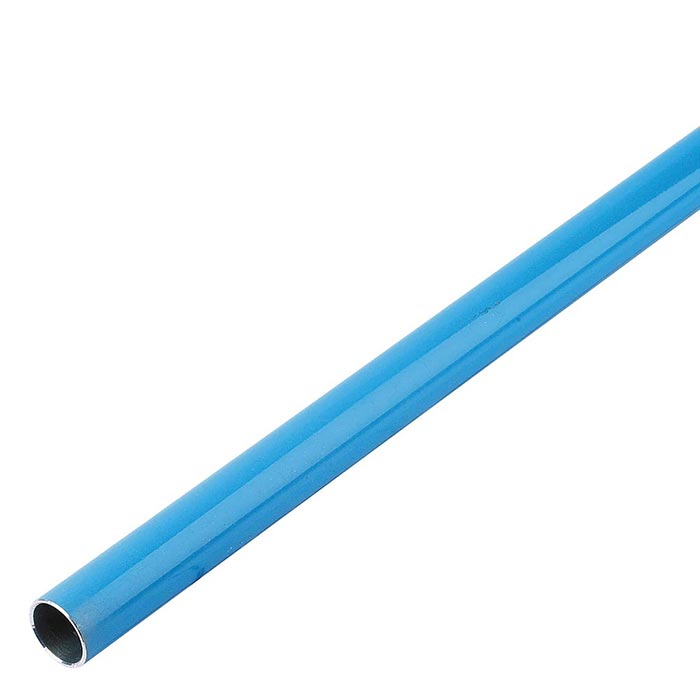

    Blue Aluminum Pipe - 9ft

    Product #: 1012A25 04 00
    øD (in): 1
    øD (mm): 25
    L (ft): 9'
    Weight: (lb): 2.04
    Quick Ship: Yes




    *Pipe must be ordered in
    box quantities.

    Blue Aluminum Pipe - 20ft

    Product #: 1016A25 04 00
    øD (in): 1
    øD (mm): 25
    L (ft): 20
    Weight: (lb): 4.24
    Quick Ship: Yes




    *Pipe must be ordered in
    box quantities.

    Gray Aluminum Pipe - 20ft

    Product #: 1016A25 06 00
    øD (in): 1
    øD (mm): 25
    L (ft): 20
    Weight: (lb): 4.24
    Quick Ship: --




    *Pipe must be ordered in
    box quantities.

    Green Aluminum Pipe - 20ft

    Product #: 1016A25 02 00
    øD (in): 1
    øD (mm): 25
    L (ft): 20
    Weight: (lb): 4.24
    Quick Ship: --




    *Pipe must be ordered in
    box quantities.

    ➤ Back to Top

    Flexible Hose

    Product #: 1001E25 00 01
    OD (in): 1 1/2
    OD (mm): 38
    ID (in): 1
    ID (mm): 25
    L (in): 1' 10"
    MIN. BEND RADIUS (in): 4
    For Use w/ Pipe Diameter(in): 1
    Quick Ship: Yes




    Product #: 1001E25 00 03
    OD (in): 1 1/2
    OD (mm): 38
    ID (in): 1
    ID (mm): 25
    L (in): 4' 11"
    MIN. BEND RADIUS (in): 4
    For Use w/ Pipe Diameter(in): 1
    Quick Ship: Limited




    Product #: 1001E25 00 04
    OD (in): 1 1/2
    OD (mm): 38
    ID (in): 1
    ID (mm): 25
    L (in): 6' 6"
    MIN. BEND RADIUS (in): 4
    For Use w/ Pipe Diameter(in): 1
    Quick Ship: Limited





    ➤ Back to Top

    Connectors

    90° Pipe to Pipe Elbows

    Product #: 6602 25 00
    øD (in): 1
    øD (mm): 25
    L (in): 2 5/8
    Z (in): 1 9/16
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

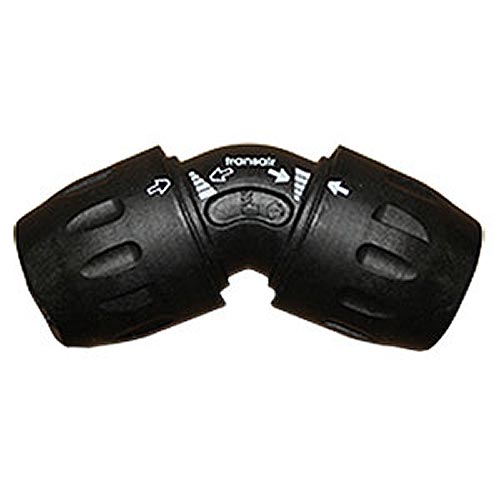

    45° Pipe to Pipe Elbows

    Product #: 6612 25 00
    øD (in): 1
    øD (mm): 25
    L (in): 4.65
    Z (in): 1.28
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded 90° Elbows

    Product #: 6609 25 22
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1/2
    HEX (mm): 27
    L (in): 3.63
    Z1 (in): 1.59
    Z2 (in): 2.97
    Z2 (mm): 2.09
    Quick Ship: --
    3D   View/Download
    CAD File




    Product #: 6609 25 28
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 3/4
    HEX (mm): 27
    L (in): 3.63
    Z1 (in): 1.59
    Z2 (in): 2.97
    Z2 (mm): 2.09
    Quick Ship: --
    3D   View/Download
    CAD File




    Product #: 6609 25 35
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1
    HEX (mm): 36
    L (in): 3.63
    Z1 (in): 1.59
    Z2 (in):3.05
    Z2 (mm): 2.17
    Quick Ship: --
    3D   View/Download
    CAD File




    ➤ Back to Top

    Male NPT Threaded 45° Elbows

    Product #: 6619 25 22
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1/2
    HEX (mm): 27
    L (in): 2.42
    Z1 (in): 1.28
    Z2 (in): 1.65
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6619 25 28
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 3/4
    HEX (mm): 27
    L (in): 2.42
    Z1 (in): 1.28
    Z2 (in): 1.65
    Quick Ship: --
    3D   View/Download
    CAD File




    Product #: 6619 25 35
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1
    HEX (mm): 36
    L (in): 2.42
    Z1 (in): 1.28
    Z2 (in):1.73
    Quick Ship: --
    3D   View/Download
    CAD File




    ➤ Back to Top

    Male NPT Threaded Connectors

    Product #: 6605 25 22
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1/2
    HEX (mm): 30
    L (in): 2.81
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6605 25 28
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 3/4
    HEX (mm): 30
    L (in): 2.81
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6605 25 35
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1
    HEX (mm): 38
    L (in): 2.95
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded Pipe Adapters

    Product #: 6621 25 22
    øD (in): 1
    øD (mm): 25
    Thread NPT (in): 1/2
    Hex (mm): 28
    L (in): 2.53
    Z (in): 1.93
    Quick Ship: --
    3D   View/Download
    CAD File




    Product #: 6621 25 28
    øD (in): 1
    øD (mm): 25
    Thread NPT (in): 3/4
    Hex (mm): 28
    L (in): 2.57
    Z (in): 1.93
    Quick Ship: --
    3D   View/Download
    CAD File




    Product #: 6621 25 35
    øD (in): 1
    øD (mm): 25
    Thread NPT (in): 1
    Hex (mm): 36
    L (in): 2.80
    Z (in): 2.05
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Equal Tees

    Product #: 6604 25 00
    øD (in): 1
    øD (mm): 25
    L (in): 5.98
    Z1 (in): 1.89
    Z2 (in): 1.57
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Pipe-to-Pipe Connectors (Unions)

    Product #: 6606 25 00
    øD (in): 1
    øD (mm): 25
    L (in): 6.08
    Z (in): 1.89
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Pipe-to-Pipe Connectors (Unions) with Vent

    Product #: 6676 25 00
    øD (in): 1
    øD (mm): 25
    L (in): 5.96
    Z (in): 1.89
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded Stud Nuts

    Product #: 6611 25 22
    øD (in): 1
    øD (mm): 25
    THREAD (NPT): 1/2
    HEX 1 (mm): 46
    HEX 2 (mm): 27
    L (in): 1.71
    Quick Ship: Limited




    Product #: 6611 25 28
    øD (in): 1
    øD (mm): 25
    THREAD (NPT): 3/4
    HEX 1 (mm): 46
    HEX 2 (mm): 27
    L (in): 1.72
    Quick Ship: Limited




    Product #: 6611 25 35
    øD (in): 1
    øD (mm): 25
    THREAD (NPT): 1
    HEX 1 (mm): 46
    HEX 2 (mm): 36
    L (in): 1.93
    Quick Ship: Limited





    ➤ Back to Top

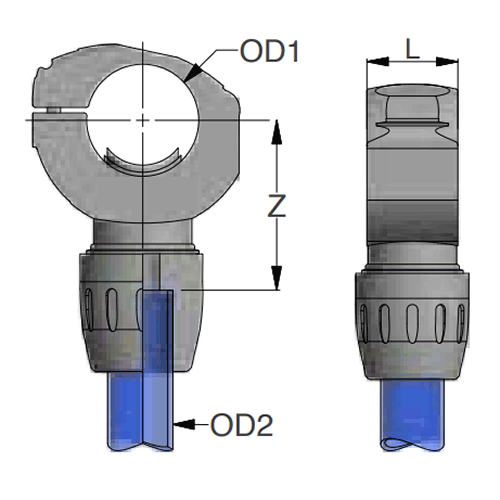

    Simple Reducing Brackets

    Product #: RA69 25 17
    øD (in): 1
    øD (mm): 25
    øD2 (in): 1/2
    øD2 (mm): 16.5
    L (in): 1.46
    Z (in): 1.76
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Threaded NPT Simple Brackets

    Product #: RA68 25N04
    øD (in): 1
    øD (mm): 25
    THD Size (in): 1/2
    HEX (mm): 30
    L (in): 1.46
    Z (in): 2.60
    Quick Ship: Limited
    3D   View/Download
    CAD File





    ➤ Back to Top

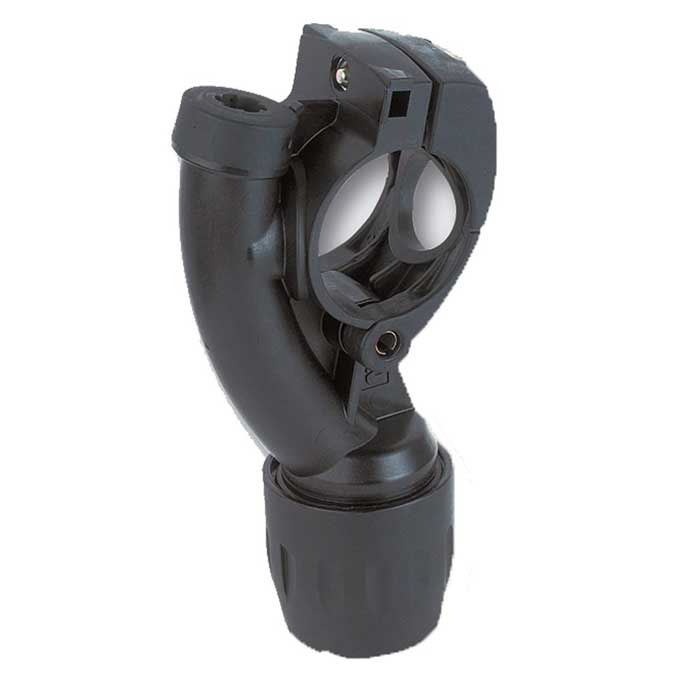

    Quick Assembly Brackets

    Product #: 6662 25 17
    øD1 (in): 1
    øD1 (mm): 25
    øD2 (in): 1/2
    øD2 (mm): 16.5
    L (in): 1 7/16
    Z (in): 3 1/4
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6662 25 00
    øD1 (in): 1
    øD1 (mm): 25
    øD2 (in): 1
    øD2 (mm): 25
    L (in): 1 7/16
    Z (in): 3
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

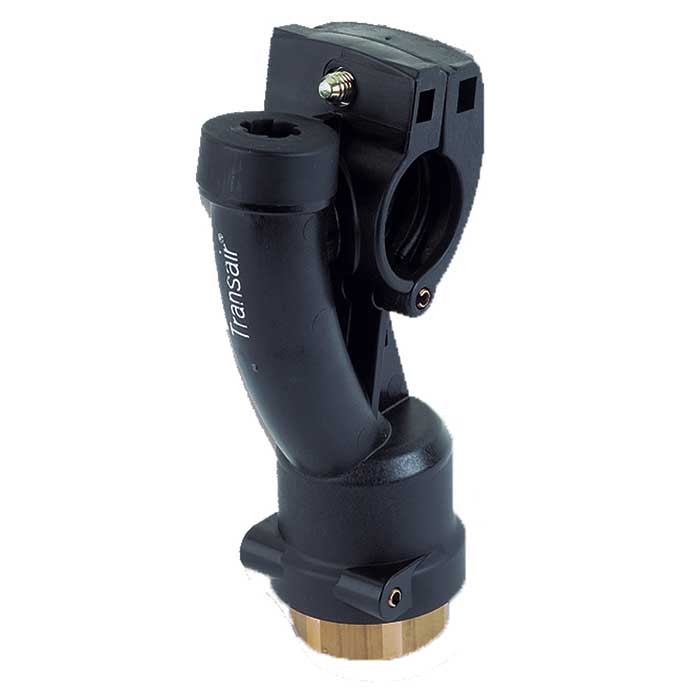

    NPT Quick Assembly Brackets

    Product #: 6663 25 22
    øD1 (in): 1
    øD1 (mm): 25
    THD SIZE (in): 1/2
    HEX (mm): 24
    L (in): 1.46
    Z (in): 3.80
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

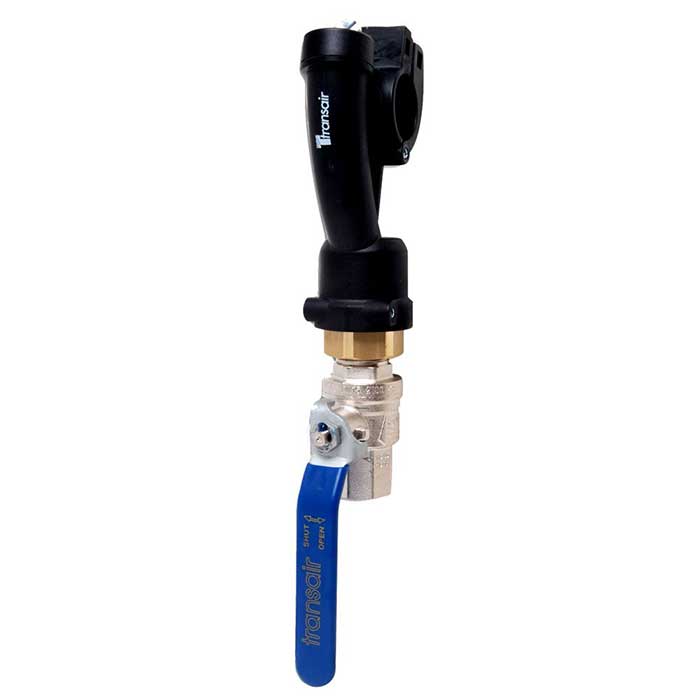

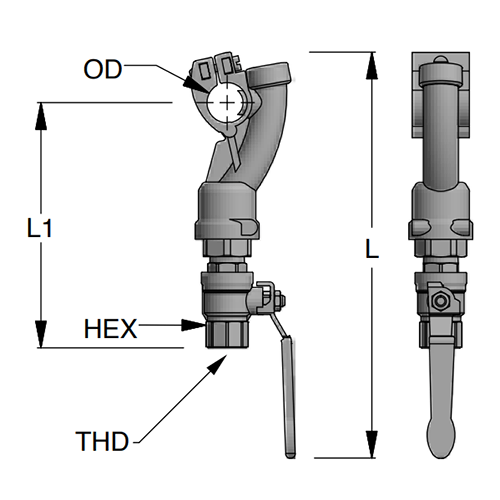

    NPT Quick Assembly Brackets With Ball Valve

    Product #: 6668 25 22
    øD (in): 1
    øD (mm): 25
    THD SIZE (in): 1/2
    HEX (mm): 25
    L (in): 10.08
    Z (in): 6.10
    Quick Ship: Yes





    ➤ Back to Top

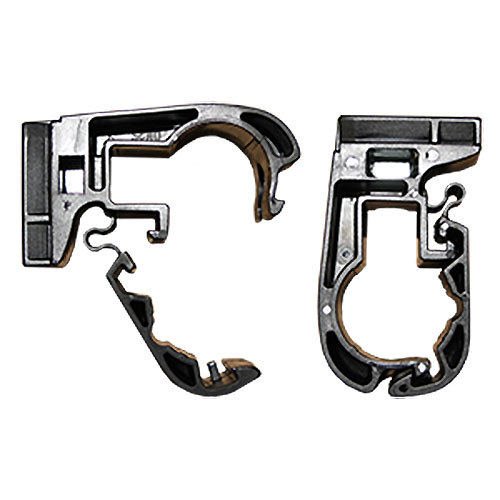

    Fixing Clip for Rigid Pipe

    Product #: 6697 25 01
    øD (in): 1
    øD (mm): 25
    C (in): 1/4
    H1 (in): 1 13/16
    H (in): 2 9/16
    K (in): 1 3/16
    L (in): 1 1/2
    Quick Ship: Yes





    ➤ Back to Top

    Wall Brackets

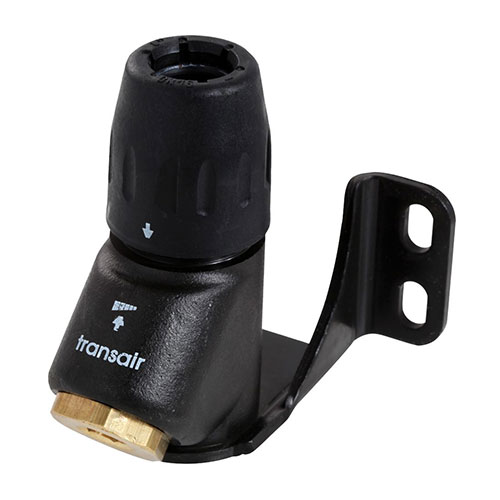

    1 Port 45° Wall Bracket - Threaded NPT Port

    Product #: 6640 25 22
    øD (in): 1
    øD (mm): 25
    THRD 1 (NPT): 1/2
    THRD 2 (NPT): 1/4
    X (in): 2.5
    Z (in): 2.5
    Quick Ship: Limited
    3D   View/Download
    CAD File

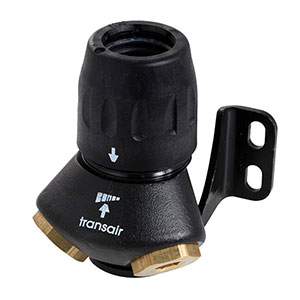

    2 Port 45° Wall Bracket - Threaded NPT Port

    Product #: 6689 25 22
    ØD(in): 1
    ØD(mm): 25
    THD SIZE 1 (in): 1/2
    THD SIZE 2 (in): 1/4
    L (in): 2.52
    X (in): 2 1/2
    Quick Ship: Yes
    3D   View/Download
    CAD File





    3 Port Wall Bracket - Threaded NPT Port

    Product #: 6696 25 22
    ØD(in): 1
    ØD(mm): 25
    THD SIZE 1 (in): 1/2
    THD SIZE 2 (in): 1/4
    X (in): 2.52
    Quick Ship: Limited
    3D   View/Download
    CAD File





    ➤ Back to Top

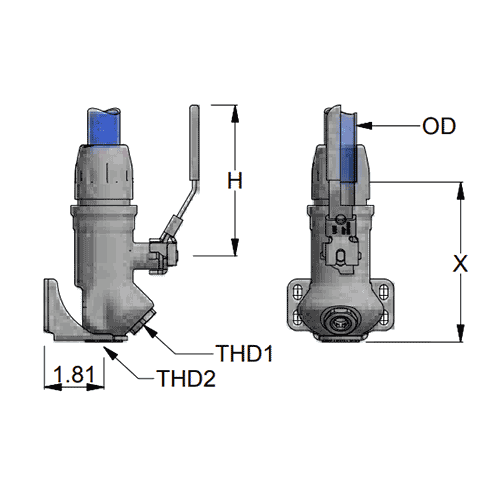

    1 Port 45° Wall Bracket With Ball Valve, NPT Port

    Product #: 6679 25 22
    ØD(in): 1
    ØD(mm): 25
    THD SIZE 1 (in): 1/2
    THD SIZE 2 (in): 1/4
    X (in): 4.86
    H (in): 4.59
    Quick Ship: --
    3D   View/Download
    CAD File





    2 Port 45° Wall Bracket With Ball Valve, NPT Port

    Product #: 6694 25 22
    ØD(in): 1/2
    ØD(mm): 16.5
    THD SIZE 1 (in): 1/2
    THD SIZE 2 (in): 1/4
    X (in): 4.09
    H (in): 3.77
    Quick Ship: --
    3D   View/Download
    CAD File





    3 Port Wall Bracket With Ball Valve, NPT Port

    Product #: 6696 25 22
    ØD(in): 1
    ØD(mm): 25
    THD SIZE 1 (in): 1/2
    THD SIZE 2 (in): 1/4
    X (in): 4.86
    H (in): 4.59
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

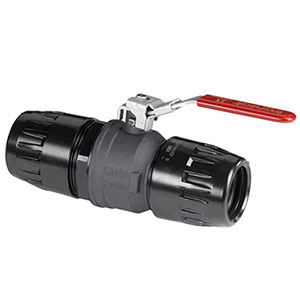

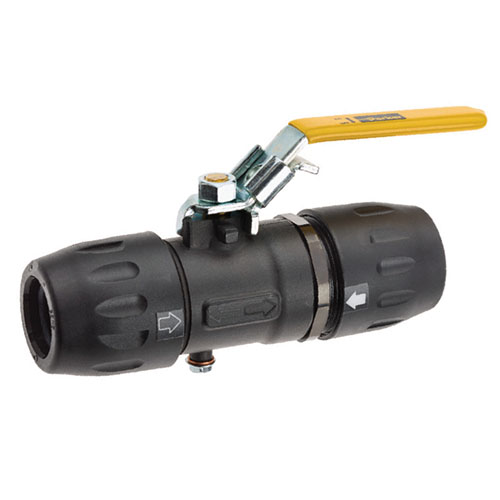

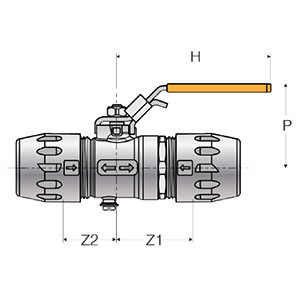

    Lockable Valves

    Product #: 4092 25 00
    ØD(in): 1
    ØD(mm): 25
    L (in): 6.10
    Z1 (in): 1.61
    Z2 (in): 2.24
    H (in): 4.61
    P (in): 2.87
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

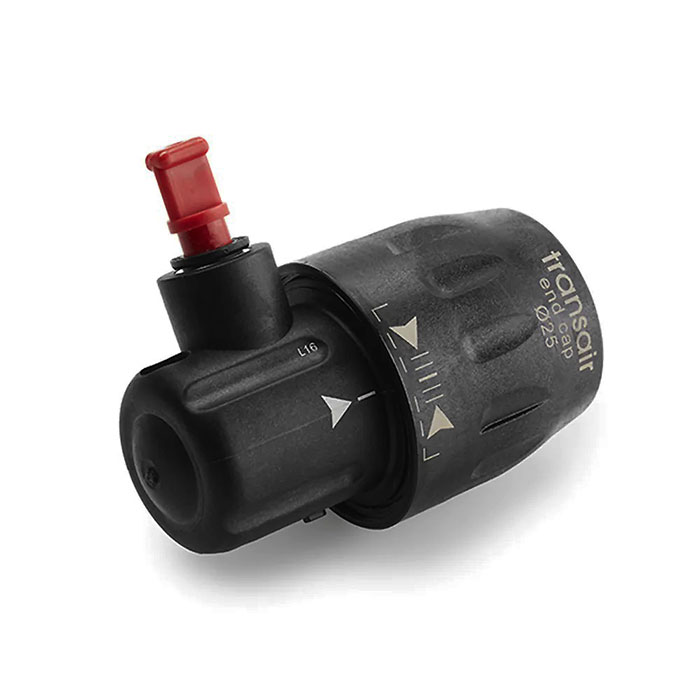

    Vented End Caps

    Product #: 6625 25 00
    øD (in): 1
    øD (mm): 25
    E (in): 15⁄16
    øG (in): 1¾
    H (in): 2
    L (in): 3
    Quick Ship: Yes
    3D   View/Download
    CAD File





    supplied with LF3000 5/16" plug.


    ➤ Back to Top

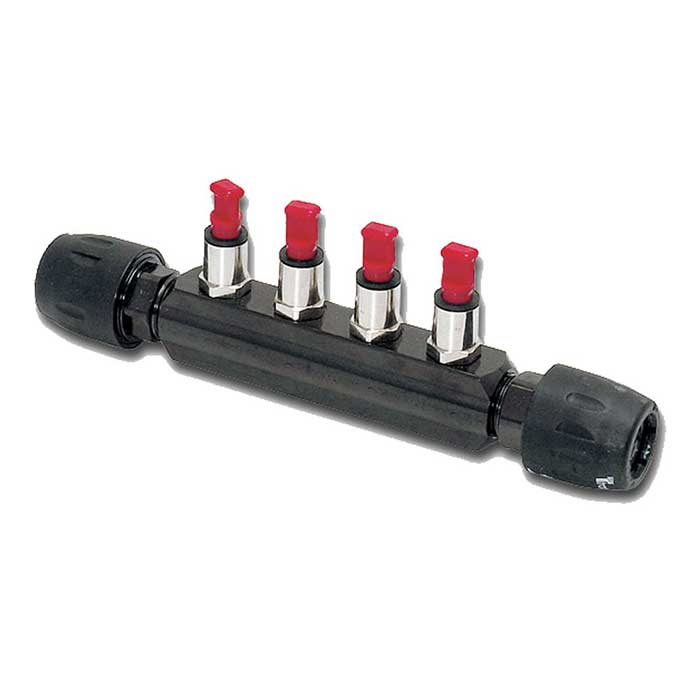

    4 Port Manifolds

    Product #: 6651 25 12 04
    øD (in): 1
    øD (mm): 25
    L (in): 10.83
    Z (in): 4.29
    L1 (in): 1.25
    N (in): 1.38
    Quick Ship: --
    3D   View/Download
    CAD File





    Supplied with four Ø12 mm plugs.
    1" supplied with 3/8" BSPP ports.

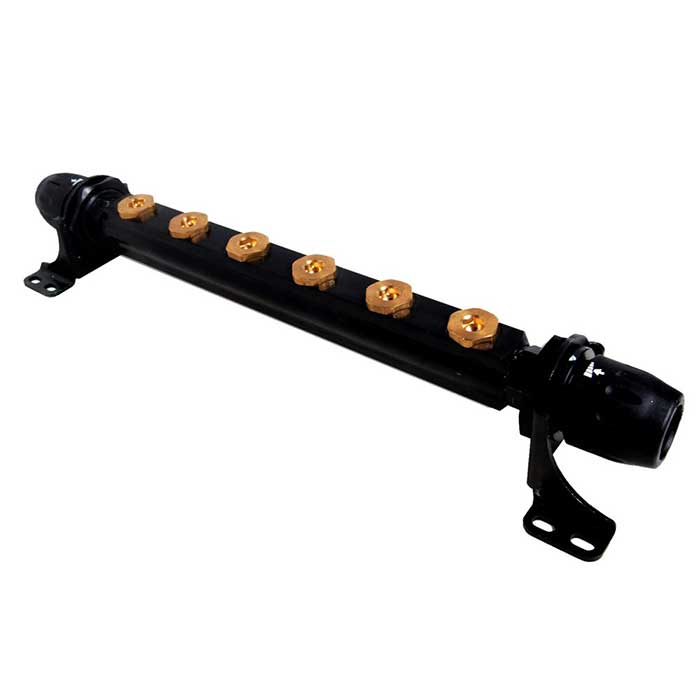

    6 Port Manifolds

    Product #: 6653 25 22 06
    øD (in): 1
    øD (mm): 25
    L (in): 10.83
    Z (in): 4.529
    L1 (in): 1.25
    N (in): 1.38
    Quick Ship: --
    3D   View/Download
    CAD File





    Supplied with four Ø12 mm plugs.
    1" supplied with 3/8" BSPP ports.

    ➤ Back to Top
