Composite Automatic Safety Couplers

Max. Working Pressure: 232 PSI (15.9 bar)
Working Temperature: 4° to +140° F (-20° to +60° C)

TransairPipeSales.com is your complete source for Transair Safety Couplers. Transair Safety Couplers are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!
CP05-U1N02
Product Features:
■ For quick and repetitive connection and disconnection
■ 100% safety – ISO 4414 and European EN 983 compliant
■ Very high flow, extremely low pressure loss
■ Lightweight and robust
■ Improved hand grip
■ Fast vent time
■ Male thread with integral seal
■ Suitable fluids: compressed air, argon, nitrogen (please consult us for other fluids)

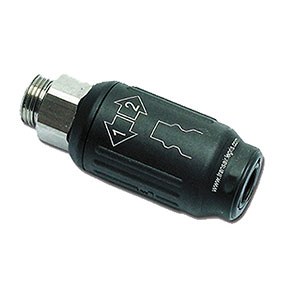

Male NPT Coupler



ISO B
1/4"
Safety
Product #: CP05 U1N02
C (in): ¼
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP05 U1N03
C (in): 3⁄8
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP05 U1N04
C (in): ½
Quick Ship: Yes







ISO B
3/8"
Safety
Product #: CP05 U2N02
C (in): ¼
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP05 U2N03
C (in): 3⁄8
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP05 U2N04
C (in): ½
Quick Ship: No







ARO
1/4"
Safety
Product #: CP05 A1N02
C (in): ¼
Quick Ship: No






ARO
1/4"
Safety
Product #: CP05 A1N03
C (in): 3⁄8
Quick Ship: No






ARO
1/4"
Safety
Product #: CP05 A1N04
C (in): ½
Quick Ship: No

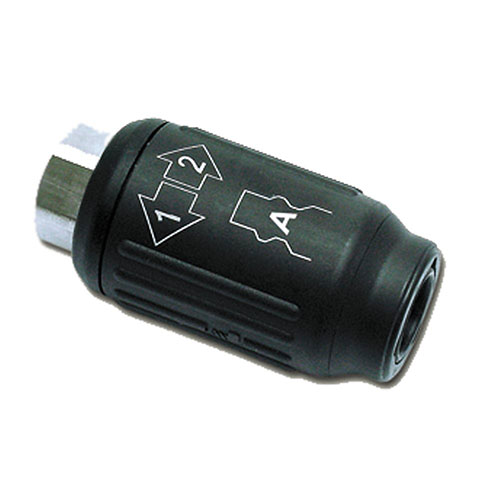

Female NPT Coupler



ISO B
1/4"
Safety
Product #: CP15 U1N02
C (in): ¼
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP15 U1N03
C (in): 3⁄8
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP15 U1N04
C (in): ½
Quick Ship: No







ISO B
3/8"
Safety
Product #: CP15 U2N02
C (in): ¼
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP15 U2N03
C (in): 3⁄8
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP15 U2N04
C (in): ½
Quick Ship: No







ARO
1/4"
Safety
Product #: CP15 A1N02
C (in): ¼
Quick Ship: No






ARO
1/4"
Safety
Product #: CP15 A1N03
C (in): 3⁄8
Quick Ship: No






ARO
1/4"
Safety
Product #: CP15 A1N04
C (in): ½
Quick Ship: No

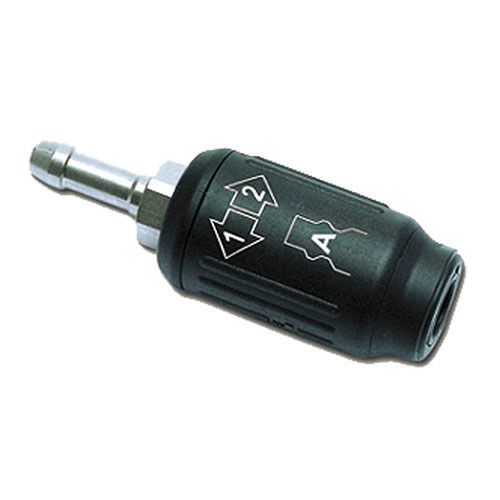

Coupler with Hosetail



ISO B
1/4"
Safety
Product #: CP21 U1 06
øD (mm): 6
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP21 U1 08
øD (mm): 8
Quick Ship: No






ISO B
1/4"
Safety
Product #: CP21 U1 10
øD (mm): 10
Quick Ship: No







ISO B
3/8"
Safety
Product #: CP21 U2 08
øD (mm): 8
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP21 U2 10
øD (mm): 10
Quick Ship: No






ISO B
3/8"
Safety
Product #: CP21 U2 13
øD (mm): 13
Quick Ship: No







ARO
1/4"
Safety
Product #: CP21 A1 06
øD (mm): 6
Quick Ship: No






ARO
1/4"
Safety
Product #: CP21 A1 08
øD (mm): 8
Quick Ship: No






ARO
1/4"
Safety
Product #: CP21 A1 10
øD (mm): 10
Quick Ship: No

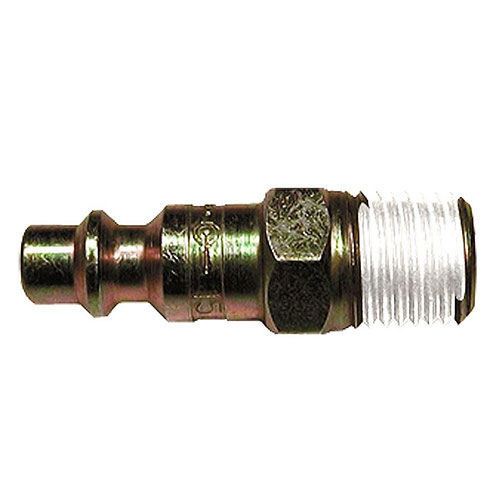

Male NPT Coupler Plug




ISO B
1/4"
Product #: 9084 23 14
C (in): ¼
Quick Ship: No







ISO B
1/4"
Product #: 9084 23 18
C (in): 3⁄8
Quick Ship: No








ISO B
3/8"
Product #: 9084 30 14
C (in): ¼
Quick Ship: No







ISO B
3/8"
Product #: 9084 30 18
C (in): 3⁄8
Quick Ship: No








ARO
1/4"
Product #: 9084 22 14
C (in): ¼
Quick Ship: No







ARO
1/4"
Product #: 9084 22 18
C (in): 3⁄8
Quick Ship: No

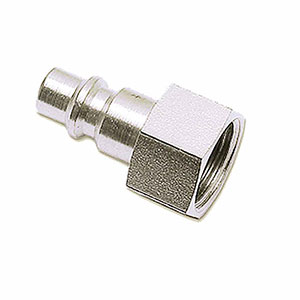

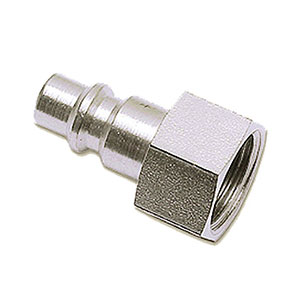

Female NPT Coupler Plug




ISO B
1/4"
Product #: 9083 23 14
C (in): ¼
Quick Ship: No







ISO B
1/4"
Product #: 9083 23 18
C (in): 3⁄8
Quick Ship: No








ISO B
3/8"
Product #: 9083 30 14
C (in): ¼
Quick Ship: No







ISO B
3/8"
Product #: 9083 30 18
C (in): 3⁄8
Quick Ship: No








ARO
1/4"
Product #: 9083 22 14
C (in): ¼
Quick Ship: No







ARO
1/4"
Product #: 9083 22 18
C (in): 3⁄8
Quick Ship: No





Coupler Plug with Hosetail




ISO B
1/4"
Product #: 9085 23 56
ID (in): ¼
Quick Ship: No







ISO B
1/4"
Product #: 9085 23 08
ID (in): 5⁄16
Quick Ship: No







ISO B
1/4"
Product #: 9085 23 60
ID (in): 3⁄8
Quick Ship: No








ISO B
3/8"
Product #: 9085 30 08
ID (in): 5⁄16
Quick Ship: No







ISO B
3/8"
Product #: 9085 30 60
ID (in): 3⁄8
Quick Ship: No







ISO B
3/8"
Product #: 9085 30 62
ID (in): ½
Quick Ship: No





How to Use
Transair® composite automatic couplers comply with worldwide ISO 4414 and European EN 983 safety standards. Disconnection is by a double twist of the sleeve.
1st rotation in direction of the arrow: pressure rapidly vented out, plug side.
couplings plug info
2nd rotation in direction of the arrow: safe disconnection of body and plug.
