Transair® Aluminum Pipe and Fittings
Diameter: 2-1/2"(63mm)

TransairPipeSales.com is your complete source for Transair 2-1/2" Pipe and Fittings. Transair® 2-1/2" Pipe and fittings are quick and easy to install.
➤ Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
Quick Menu
  • Aluminum Pipe
  • Flexible Hose
  • 90° Pipe to Pipe Elbows
  • 45° Pipe to Pipe Elbows
  • Male NPT Threaded 90° Elbows
  • Male NPT Threaded 45° Elbows
  • Plug-In Reducers
  • Male NPT Threaded Connectors
  • Equal Tees
  • Reducing Tees
  • Expanding Tees

  • Equal Y
  • Equal Crosses
  • Pipe-to-Pipe (Unions)
  • Male Stud Nuts
  • NPT Simple Reducing Brackets
  • Quick Assembly Brackets
  • Valves
  • Flanged Connectors
  • End Cap
  • Pipe Hanger
    • 50mm Transair

    Aluminum Pipe

    Blue Aluminum Pipe - 9ft

    Product #: 1013A63 04
    øD (in): 2-1/2
    øD (mm): 63
    L (ft): 9'
    Weight: (lb): 6.92
    Quick Ship: Yes




    *Pipe must be ordered in
    box quantities.

    Blue Aluminum Pipe - 20ft

    Product #: 1016A63 04
    øD (in): 2-1/2
    øD (mm): 63
    L (ft): 20'
    Weight: (lb): 13.84
    Quick Ship: Yes




    *Pipe must be ordered in
    box quantities.

    Gray Aluminum Pipe - 20ft

    Product #: 1016A63 06
    øD (in): 2-1/2
    øD (mm): 63
    L (ft): 20'
    Weight: (lb): 13.84
    Quick Ship: --




    *Pipe must be ordered in
    box quantities.

    Green Aluminum Pipe - 20ft

    Product #: 1016A63 02
    øD (in): 2-1/2
    øD (mm): 63
    L (ft): 20'
    Weight: (lb): 13.84
    Quick Ship: --




    *Pipe must be ordered in
    box quantities.

    ➤ Back to Top

    Flexible Hose

    Product #: 1001E63 00 08
    OD (in): 3-1/8
    OD (mm): 79
    ID (in): 2-1/2
    ID (mm): 63
    L (in): 4' 7"
    MIN. BEND RADIUS (in): 12
    For Use w/ Pipe Diameter(in): 2-1/2"
    Quick Ship: Limited




    Product #: 1001E63 00 05
    OD (in): 3-1/8
    OD (mm): 79
    ID (in): 2-1/2
    ID (mm): 63
    L (in): 9' 10"
    MIN. BEND RADIUS (in): 26
    For Use w/ Pipe Diameter(in): 2-1/2
    Quick Ship: Limited




    Product #: 1001E63 00 06
    OD (in): 3-1/8
    OD (mm): 79
    ID (in): 2-1/2
    ID (mm): 63
    L (in): 13' 1"
    MIN. BEND RADIUS (in): 26
    For Use w/ Pipe Diameter(in): 2-1/2
    Quick Ship: Limited





    ➤ Back to Top

    2-1/2" Connectors

    90° Pipe to Pipe Elbows

    Product #: 6602 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 6.69
    Z (in): 2.46
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

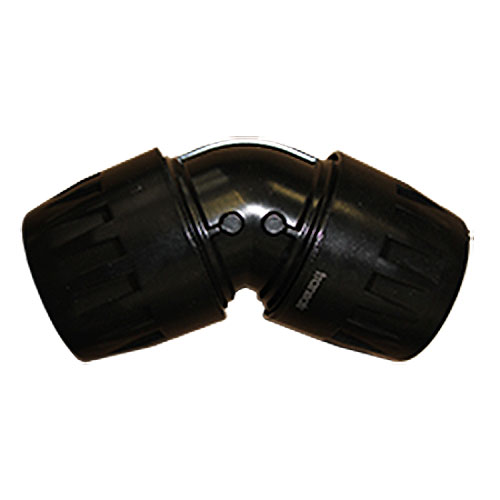

    45° Pipe to Pipe Elbows

    Product #: 6612 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 7.76
    Z (in): 1.5
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded 45° Elbows

    Product #: 6619 63 44
    øD (in): 2-1/2
    øD (mm): 63
    THD SIZE (in): 1 1/2
    HEX (mm): 50
    L (in): 3.86
    Z1 (in): 1.50
    Z2 (in): 3.15
    Quick Ship: --




    ➤ Back to Top

    Plug-In Reducer

    Product #: 6666 40 63
    øD (in): 2-1/2
    øD (mm): 63
    øD2 (in): 1-1/2
    øD2 (mm): 40
    L (in): 4.72
    Z (in): 2.95
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6666 50 63
    øD (in): 2-1/2
    øD (mm): 63
    øD2 (in): 2
    øD2 (mm): 50
    L (in): 4.92
    Z (in): 2.56
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded Connectors

    Product #: 6605 63 44
    øD (in): 2-1/2
    øD (mm): 63
    THD SIZE (in): 2
    HEX (mm): 70
    L (in): 4.65
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6605 63 41
    øD (in): 2-1/2
    øD (mm): 63
    THD SIZE (in): 2-1/2
    HEX (mm): 80
    L (in): 5.51
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6605 63 46
    øD (in): 2-1/2
    øD (mm): 63
    THD SIZE (in): 3
    HEX (mm): 80
    L (in): 5.49
    Quick Ship: Yes
    3D   View/Download
    CAD File




    ➤ Back to Top

    Equal Tees

    Product #: 6604 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 9.84
    Z1 (in): 2.46
    Z2 (in): 2.46
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

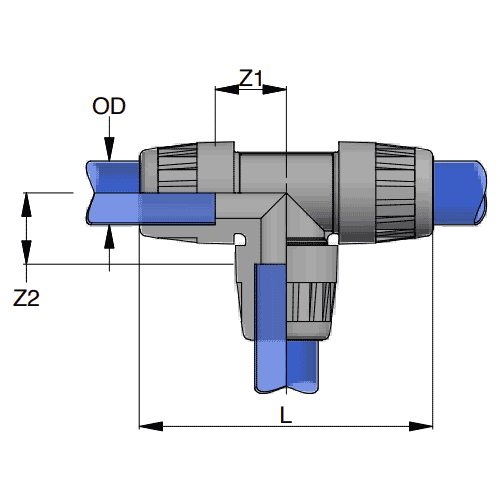

    Reducing Tees

    Product #: 6604 63 40
    øD (in): 2-1/2
    øD (mm): 63
    øD2 (in): 1-1/2
    øD2 (mm): 40
    L (in): 9.84
    Z1 (in): 2.46
    Z2 (in): 4.60
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6604 63 50
    øD (in): 2-1/2
    øD (mm): 63
    øD2 (in): 2
    øD2 (mm): 50
    L (in): 9.84
    Z1 (in): 2.46
    Z2 (in): 4.60
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Expanding Tee

    Product #: RA04 63 L1
    øD (in): 2-1/2
    øD (mm): 63
    øD2 (in): 3
    øD2 (mm): 76
    L (in): 13.70
    Z1 (in): 5.59
    Z2 (in): 6.85
    Z2 (in): 6.85
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Equal Y

    Product #: RA26 63 00
    øD1 (in): 2-1/2
    øD1 (mm): 63
    L (in): 17.01
    Z1 (in): 5.98
    Z2 (in): 11.02
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Equal Crosses

    Product #: RA07 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 14.33
    Z (in): 7.17
    Quick Ship: Yes





    Use four connectors (6606) to connect equal crosses (RA07 40 00, RA07 50 00,
    and RA07 63 00) to Transair® Ø 1 1/2", Ø 2", and Ø 2 1/2" pipes.


    ➤ Back to Top

    Pipe-to-Pipe Connectors (Unions)

    Product #: 6606 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 6.89
    Z (in): 1.00
    Quick Ship: Yes
    3D   View/Download
    CAD File





    Pipe-to-Pipe Connectors (Unions) with Vent

    Product #: 6676 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 6.89
    Z (in): 1.00
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Male NPT Threaded Stud Nuts

    Product #: 6611 63 44
    øD (in): 2-1/2
    øD (mm): 63
    THREAD (NPT): 2
    HEX 1 (mm): -
    HEX 2 (mm): 70
    L (in): 3.05
    Quick Ship: Limited




    Product #: 6611 63 41
    øD (in): 2-1/2
    øD (mm): 63
    THREAD (NPT): 2
    HEX 1 (mm): -
    HEX 2 (mm): 80
    L (in): 3.53
    Quick Ship: Limited





    ➤ Back to Top

    Threaded NPT Simple Reducing Brackets

    Product #: RA68 63N08
    OD (in): 2-1/2
    OD (mm): 63
    THD Size (in): 1
    HEX (mm): 41
    L (in): 1.46
    Z (in): 4.02
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

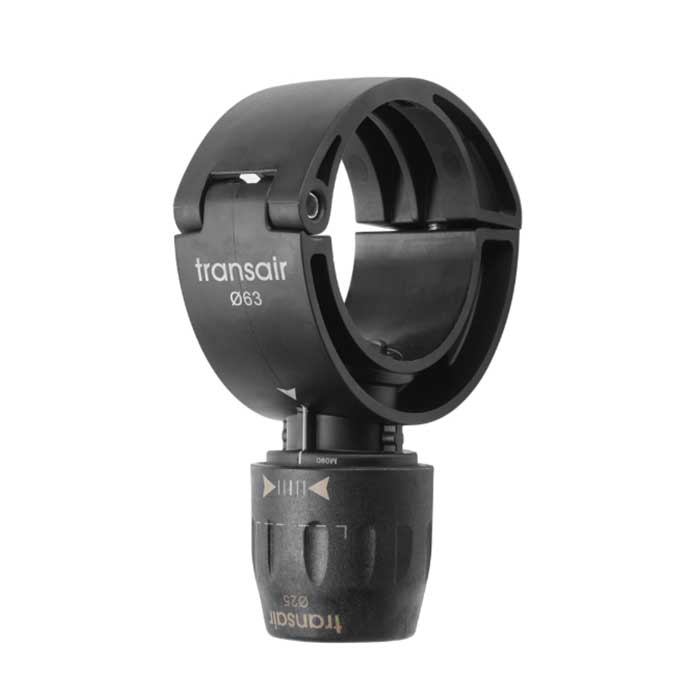

    Quick Assembly Brackets

    Product #: 6662 63 25
    OD1 (in): 2-12
    OD1 (mm): 63
    OD2 (in): 1
    OD2 (mm): 25
    L (in): 1.46
    Z1 (in): 2.56
    Z2 (in): 1.73
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    NPT Quick Assembly Brackets

    Product #: 6663 63 22
    OD1 (in): 2-1/2
    OD1 (mm): 63
    THD SIZE (in): 1/2
    HEX (mm): 30
    L (in): 1.46
    Z (in): 3.23
    Quick Ship: Yes
    3D   View/Download
    CAD File




    Product #: 6663 63 28
    OD1 (in): 2-1/2
    OD1 (mm): 63
    THD SIZE (in): 3/4
    HEX (mm): 32
    L (in): 1.46
    Z (in): 3.58
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    NPT Quick Assembly Brackets With Ball Valve

    Product #: 6668 63 22
    OD (in): 2-1/2
    OD (mm): 63
    THD SIZE (in): 1/2
    HEX (mm): 25
    L (in): 10.40
    Z (in): 5.53
    Quick Ship: Yes




    Product #: 6668 63 28
    OD (in): 2-1/2
    OD (mm): 63
    THD SIZE (in): 3/4
    HEX (mm): 31
    L (in): 11.69
    Z (in): 6.08
    Quick Ship: Yes





    ➤ Back to Top

    Lockable Double Female Valve

    Product #: 4092 63 00
    ØD(in): 2-1/2
    ØD(mm): 63
    L (in): 10.59
    Z1 (in): 2.60
    Z2 (in): 3.03
    H (in): 7.87
    P (in): 4.29
    Quick Ship: Yes




    ➤ Back to Top

    Flange Adapter - DIN

    Product #: RA30 63 00
    øD1 (in): 2-1/2
    øD1 (mm): 63
    DN: 65
    NO. of Bolt Holes: 4
    L (in): 5.77
    T (in): 0.91
    D (in): 5.71
    Quick Ship: --
    3D   View/Download
    CAD File





    Flange Adapter - ANSI

    Product #: RA31 63 00
    øD1 (in): 2-1/2
    øD1 (mm): 63
    DN: 65
    NO. of Bolt Holes: 4
    L (in): 5.77
    T (in): 0.91
    D (in): 5.47
    Quick Ship: --
    3D   View/Download
    CAD File





    ➤ Back to Top

    Vented End Cap

    Product #: 6625 63 00
    øD (in): 2-1/2
    øD (mm): 63
    L (in): 4.37
    Z (in): 2.85
    Quick Ship: Yes
    3D   View/Download
    CAD File





    ➤ Back to Top

    Pipe Hanger

    Product #: 6697 63 01
    øD (in): 2-1/2
    øD (mm): 63
    THD Size (in): 3/8-16 UNC
    L (in): 2-7/8
    Quick Ship: Yes
    3D   View/Download
    CAD File






    ➤ Back to Top
