Transair® Condition Monitoring
Transair® Technology puts vital information and analytics in the palm of your hand to ensure your compressed air system is running at optimum levels. Let Transair® technology monitor your Transair compressed air piping system, ALERT you to system changes, and provide data that helps reduce downtime and increase productivity.
Transair powered by Transair® Technology helps you
keep your system healthy and operating efficiently.
Transair® consists of a wide range of sensors that
provide consistent and accurate readings for pressure,
temperature, humidity, power, and flow. The system
collects data so you can take the necessary steps to
optimize your compressed air equipment and your
system’s performance. The easy-to-use web-based
interface also alerts the user to unexpected conditions
that may damage components and equipment over time.
Transair Condition Monitoring Catalog
Note: California residents click here for Proposition 65 information
WARNING: This product (SNPT2-10-2-4MP, SNHT2-10-2-4MP, RA68 25 FL, RA68 40 FL, RA68 50 FL, RA68 63 FL, RR63 L1 FL, RR63 L3 FL, RR63 L8 FL, SN-CSMT-1) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298
Request A Quote!

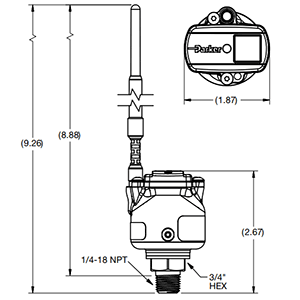

Pressure Sensors
Click For Larger View
Click For Larger ViewHex (in): ¾
NPT: ¼-18
Product Features:
■ Operating range: 0 to 150 PSI (0 to 10.3 bar)
■ Accuracy (at +77° F): 1.5%
■ Resolution 0.1 PSI
■ Response Time: 10 seconds
 |
|||||
 |
|||||

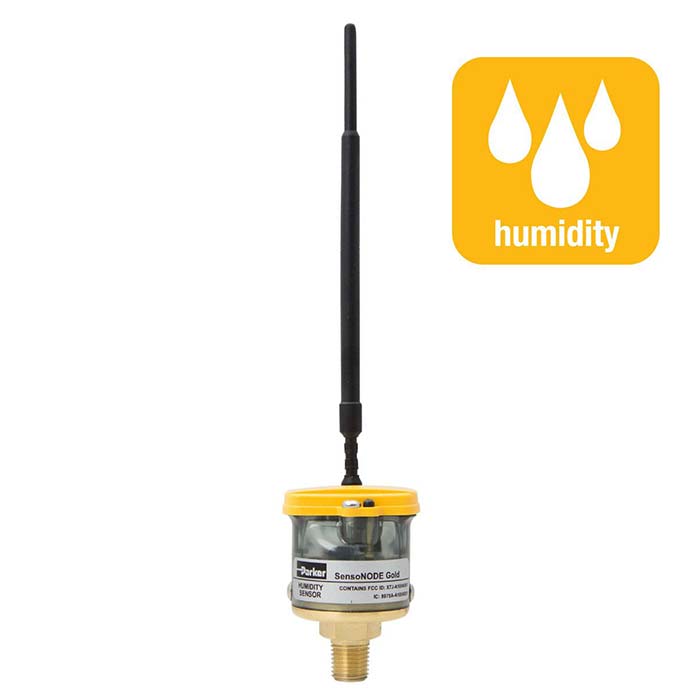

Humidity Sensors
Click For Larger View
Click For Larger ViewHex (in): ¾
NPT: ¼-18
Product Features:
■ Operating range: 0 to 100% Relative Humidity
■ Accuracy (+77° F, 20% RH to 80% RH, at Ambient Pressure): ±5% RH max
■ Resolution (at +77° F): 0.1% RH
■ Response Time: 10 seconds
|
|||||
|
|||||
Temperature Sensors
Click For Larger View
Click For Larger ViewHex (in): ¾
NPT: ¼-18
Product Features:
■ Fluid temperature range: +14° to +185° F (-10 to +85° C)
■ Accuracy (at +77° F): ±3.0%
■ Resolution (+14° to +120° F): 1° F
■ Response time: 10 seconds
|
|||||
|
|||||

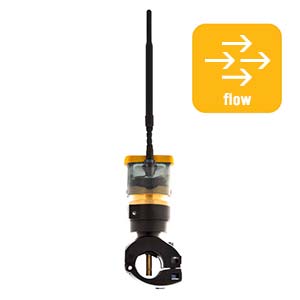

Flow Sensors
*Scroll to the right on mobile to see entire chart

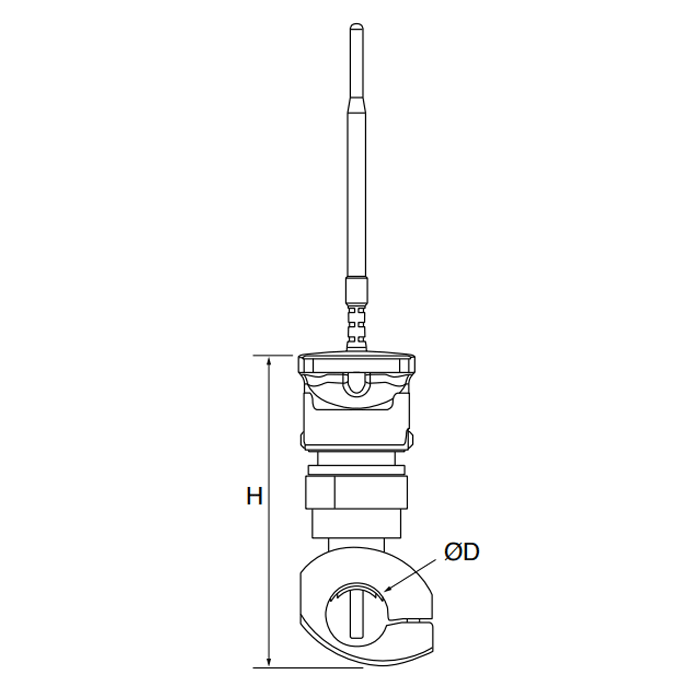

Simple Reducing Bracket with Sensor
Click For Larger View
Click For Larger View
Maximun calibrated measurement range
*Scroll to the right on mobile to see entire chart

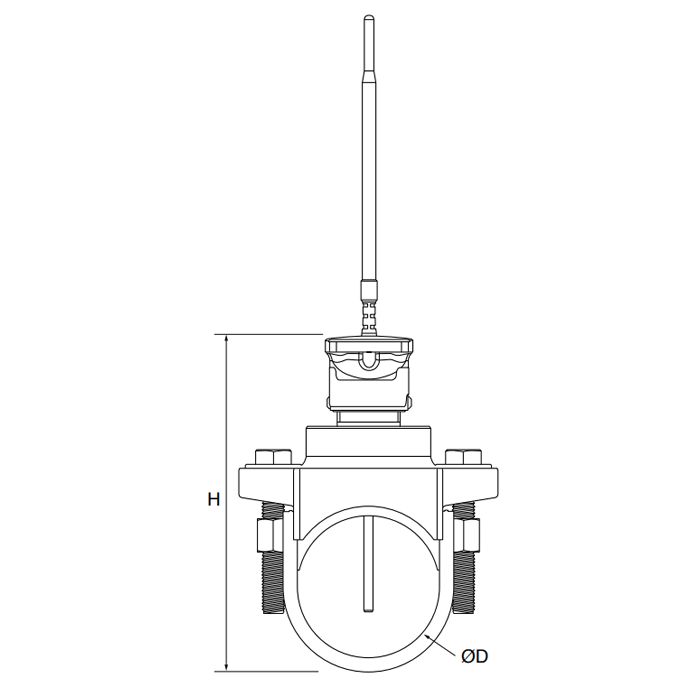

Simple Reducing Bracket with Sensor
Click For Larger View
Click For Larger View
Maximun calibrated measurement range
*Scroll to the right on mobile to see entire chart
Communication Hardware
Collection Server
■ Wireless star topology with sensor nodes communicating directly to promary receiver node (PRN)
■ PRN connected to collection server via USB 2.0 port
■ Wireless signal strength and battery voltage reported in software
■ Data buffer storage for communications interruptions
■ Data transmission to the cloud through wireless, ethernet or cellular options
Wireless frequency: 902 to 928MHz
Temperature range: -4° to +158° F (-20° to +70° C)
Data upload rate: 60 seconds (default) to variable rate
AC power input: 100 to 240V – 1.8A, (50 to 60Hz)
Standard external communications modes: ethernet, wireless
Click For Larger View
Click For Larger ViewProduct #: SN-CSMT-1
Ethernet: Yes
Wifi: Yes
Primary Receiver Node: SNPRN-2
|
|||||
|
|||||
