Transair® Stainless Steel Pipe and Fittings
Diameter: 3"(76mm)
TransairPipeSales.com is your complete source for Transair 3" Pipe and Fittings. Transair® 3" Pipe and fittings are quick and easy to install.
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
Note: California residents click here for Proposition 65 information
WARNING:
These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm.
For more information go to www.p65Warnings.ca.gov
• Stainless Steel Pipe
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Plug-In Reducers
• Male NPT Threaded Adapter
• Reducing Tees
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Plug-In Reducers
• Male NPT Threaded Adapter
• Reducing Tees
Stainless Steel Pipe
3" (76mm) Pipe - 20ft
Click For Larger View
Click For Larger View
Product #: TX16 L1 00
øD (in): 3
øD (mm): 76
L (ft): 20'
Weight (lb): 39.5
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
øD (in): 3
øD (mm): 76
L (ft): 20'
Weight (lb): 39.5
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
 |
|||||
 |
|||||
➤ Back to Top
3" Connectors
90° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RX02 L1 00
øD (in): 3
øD (mm): 76
Z (in): 7.44
Weight (lb): 2.28
øD (in): 3
øD (mm): 76
Z (in): 7.44
Weight (lb): 2.28
|
|||||
|
|||||
➤ Back to Top

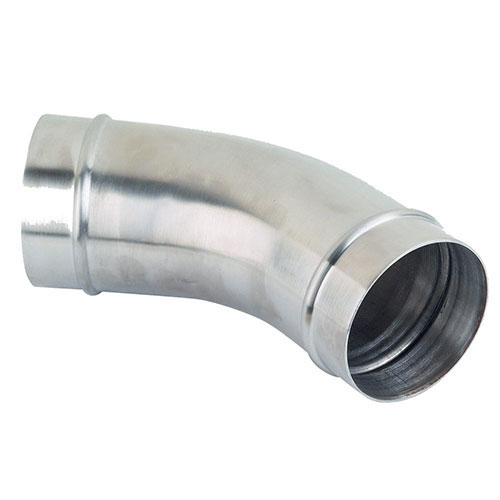

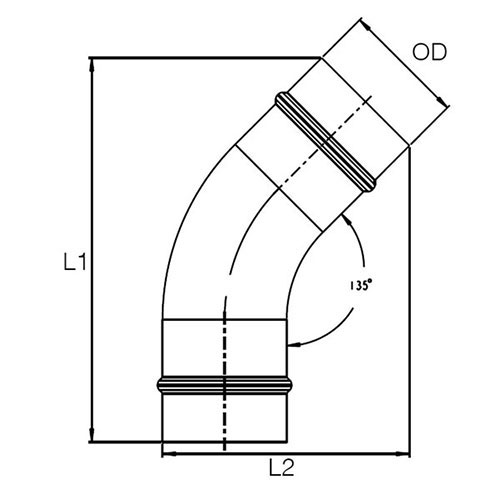

45° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RX12 L1 00
øD (in): 3
øD (mm): 76
L1 (in): 9.27
L2 (in): 5.96
Weight (lb): 1.56
øD (in): 3
øD (mm): 76
L1 (in): 9.27
L2 (in): 5.96
Weight (lb): 1.56
|
|||||
|
|||||
Use 2 connectors RR01 to connect elbow RX12 to Transair® stainless steel pipe.
➤ Back to Top
Reducing Tees
Click For Larger View
Click For Larger View
Product #: RX04 L1 M4
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 1½
øD2 (mm): 42
L (in): 11.42
Z1 (in): 5.71
Z2 (in): 7.20
Weight (lb): 1.03
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 1½
øD2 (mm): 42
L (in): 11.42
Z1 (in): 5.71
Z2 (in): 7.20
Weight (lb): 1.03
|
|||||
|
|||||
Product #: RX04 L1 M6
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 2
øD2 (mm): 60
L (in): 11.42
Z1 (in): 5.71
Z2 (in): 7.20
Weight (lb): 1.10
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 2
øD2 (mm): 60
L (in): 11.42
Z1 (in): 5.71
Z2 (in): 7.20
Weight (lb): 1.10
|
|||||
|
|||||
Female NPT Threaded Reducing Tees
Click For Larger View
Click For Larger View
Product #: RX20 L1N04*
øD (in): 3
øD (mm): 76
Thread Size (in): ¾
L (in): 11.50
Z1 (in): 5.71
Z2 (in): 2.48
Weight (lb): 1.97
øD (in): 3
øD (mm): 76
Thread Size (in): ¾
L (in): 11.50
Z1 (in): 5.71
Z2 (in): 2.48
Weight (lb): 1.97
|
|||||
|
|||||
➤ Back to Top

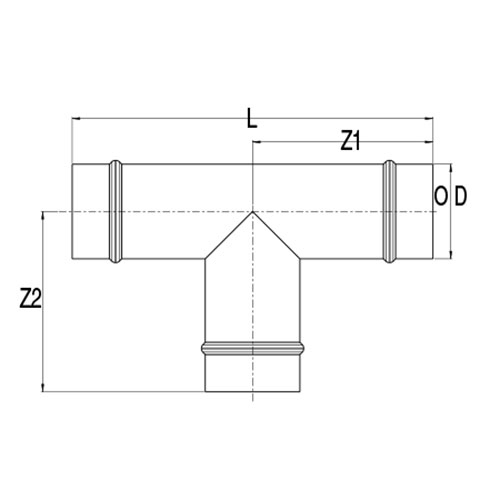

Equal Tees
Click For Larger View
Click For Larger View
Product #: RX04 L1 00
øD (in): 3
øD (mm): 76
L (in): 11.50
Z1 (in): 5.71
Z2 (in): 5.71
Weight (lb): 2.35
øD (in): 3
øD (mm): 76
L (in): 11.50
Z1 (in): 5.71
Z2 (in): 5.71
Weight (lb): 2.35
|
|||||
|
|||||
➤ Back to Top

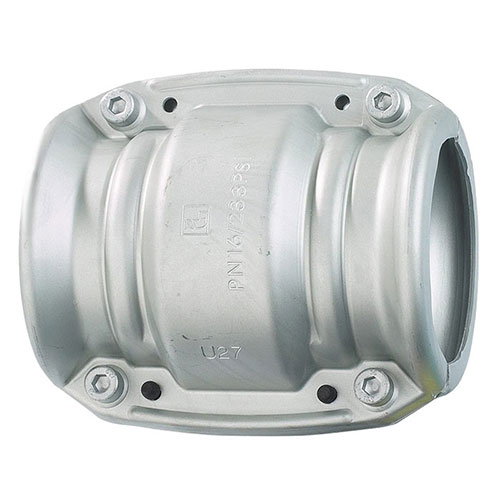

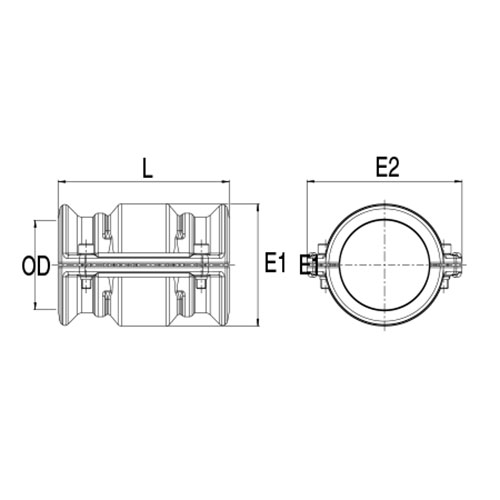

Pipe-to-Pipe Connectors (Unions)
Click For Larger View
Click For Larger View
Product #: RR01 L1 01
Seal: EPDM
øD (in): 3
øD (mm): 76
L (in): 5.75
Weight (lb): 2.5
Seal: EPDM
øD (in): 3
øD (mm): 76
L (in): 5.75
Weight (lb): 2.5
|
|||||
|
|||||
Product #: RR01 L1 02
Seal: FKM
øD (in): 3
øD (mm): 76
L (in): 5.75
Weight (lb): 2.5
Seal: FKM
øD (in): 3
øD (mm): 76
L (in): 5.75
Weight (lb): 2.5
|
|||||
|
|||||
➤ Back to Top

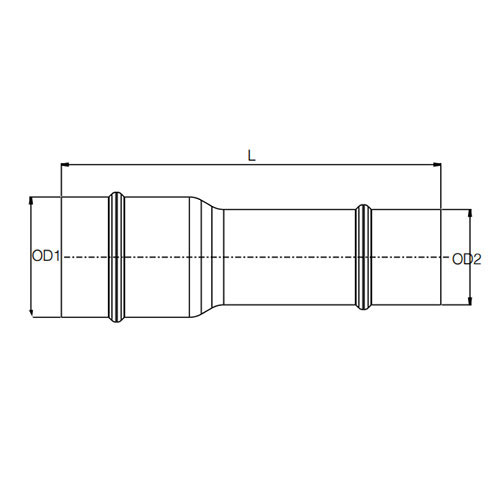

Plug-In Reducers
Click For Larger View
Click For Larger View
Product #: RX66 L1 M6
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 2
øD2 (mm): 60
L (in): 9.45
Weight (lb): 1.22
øD1 (in): 3
øD1 (mm): 76
øD2 (in): 2
øD2 (mm): 60
L (in): 9.45
Weight (lb): 1.22
|
|||||
|
|||||
➤ Back to Top
End Caps
Click For Larger View
Click For Larger View
Product #: RX25 L1 00
øD (in): 3
øD (mm): 76
L (in): 4.17
Weight (lb): 0.77
øD (in): 3
øD (mm): 76
L (in): 4.17
Weight (lb): 0.77
|
|||||
|
|||||
➤ Back to Top
Male Threaded NPT Adapter
Click For Larger View
Click For Larger View
Product #: RR21 L1N20
øD (in): 3
øD (mm): 76
Thread Size (in): 2½
L (in): 4.92
Weight (lb): 4.34
øD (in): 3
øD (mm): 76
Thread Size (in): 2½
L (in): 4.92
Weight (lb): 4.34
|
|||||
|
|||||
Product #: RR21 L1N24
øD (in): 3
øD (mm): 76
Thread Size (in): 3
L (in): 5.24
Weight (lb): 6.84
øD (in): 3
øD (mm): 76
Thread Size (in): 3
L (in): 5.24
Weight (lb): 6.84
|
|||||
|
|||||
Use 1 connector RR01 to connect end cap RR05 to Transair® stainless steel pipe Ø76.
➤ Back to Top

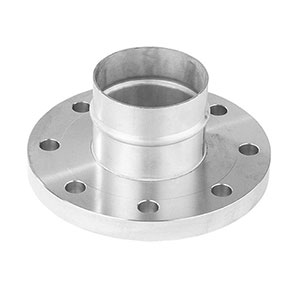

Flange Adapter
Click For Larger View
Click For Larger View
Product #: RX30 L1 00
øD (in): 3
øD (mm): 76

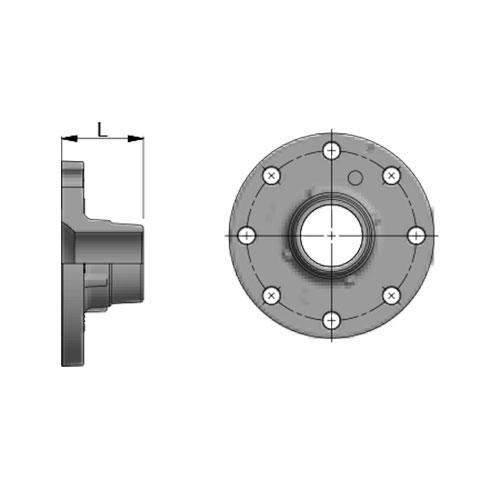

Standard: DIN
D1 (in): 7.28
D2 (in): 5.71
D3 (in): 0.71
L (in): 2.95
Weight (lb): 4.28
øD (in): 3
øD (mm): 76
Standard: DIN
D1 (in): 7.28
D2 (in): 5.71
D3 (in): 0.71
L (in): 2.95
Weight (lb): 4.28
|
|||||
|
|||||
Product #: RX30 L1 00
øD (in): 3
øD (mm): 76
Standard: ANSI
D1 (in): 7.87
D2 (in): 6.29
D3 (in): 0.74
L (in): 2.95
Weight (lb): 7.05
øD (in): 3
øD (mm): 76
Standard: ANSI
D1 (in): 7.87
D2 (in): 6.29
D3 (in): 0.74
L (in): 2.95
Weight (lb): 7.05
|
|||||
|
|||||
EPDM Gasket
Click For Larger View
Click For Larger View
Product #: EW05 L1 01
øD (in): 3
øD (mm): 76
For Use with: RX30 L1 00 & RX31 L1 00
øD (in): 3
øD (mm): 76
For Use with: RX30 L1 00 & RX31 L1 00
|
|||||
|
|||||
BOLT KIT PART NO.: EW10 00 01 | MAX. TIGHTENING TORQUE (FT-LBS): 147.51
➤ Back to Top
Butterfly Valves
Click For Larger View
Click For Larger View
Product #: VR02 L1 01US
Seal: EPDM
Standard Flange: ANSI
øD (in): 3
øD (mm): 76
Number of Lugs: 4
Weight (lb): 7.05
Bolt part #: EW10 00 01
Flange part #: RX31 L1 00
Seal: EPDM
Standard Flange: ANSI
øD (in): 3
øD (mm): 76
Number of Lugs: 4
Weight (lb): 7.05
Bolt part #: EW10 00 01
Flange part #: RX31 L1 00
|
|||||
|
|||||
Product #: VR02 L1 02US
Seal: FKM
Standard Flange: ANSI
øD (in): 3
øD (mm): 76
Number of Lugs: 4
Weight (lb): 7.05
Bolt part #: EW10 00 01
Flange part #: RX31 L1 00
Seal: FKM
Standard Flange: ANSI
øD (in): 3
øD (mm): 76
Number of Lugs: 4
Weight (lb): 7.05
Bolt part #: EW10 00 01
Flange part #: RX31 L1 00
|
|||||
|
|||||
EW06 bolt kits are not supplied for valve/flanges assembly. The butterfly valves do not require additional ring when connected to circular flanges
MAX. TIGHTENING TORQUE (FT-LBS): 36.88
➤ Back to Top
Fixture Accessories
Quick Assembly Direct Feed Bracket
Click For Larger View
Click For Larger View
Product #: RR89 L1N08 01
Seal: EPDM
ØD (in): 3
ØD (mm): 76
L (in): 5.39
Weight (lbs): 4.30
Seal: EPDM
ØD (in): 3
ØD (mm): 76
L (in): 5.39
Weight (lbs): 4.30
|
|||||
|
|||||
Product #: RR89 L1N08 02
Seal: FKM
ØD (in): 3
ØD (mm): 76
L (in): 5.39
Weight (lbs): 4.30
Seal: FKM
ØD (in): 3
ØD (mm): 76
L (in): 5.39
Weight (lbs): 4.30
|
|||||
|
|||||
➤ Back to Top

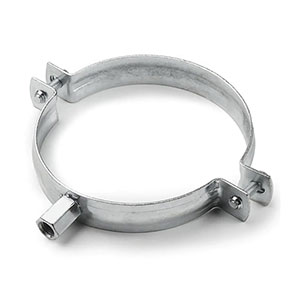

Fixing Clip for Stainless Steel Pipe
Click For Larger View
Click For Larger View
Product #: EX01 L1 00
ØD (in): 3
ØD (mm): 76
Thread Size (in): 3⁄8"-16
Max admitted static load: 200 daN
ØD (in): 3
ØD (mm): 76
Thread Size (in): 3⁄8"-16
Max admitted static load: 200 daN
|
|||||
|
|||||
Click For Larger View
Product #: ER01 L1 00
ØD (in): 3
ØD (mm): 76
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
ØD (in): 3
ØD (mm): 76
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
|
|||||
|
|||||
➤ Back to Top
