Transair® Stainless Steel Pipe and Fittings
Diameter: 4"(101mm)

TransairPipeSales.com is your complete source for Transair 4" Pipe and Fittings. Transair® 4" Pipe and fittings are quick and easy to install.
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
• Stainless Steel Pipe
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Plug-In Reducers
• Reducing Tees
• Equal Tees
• End Caps
• Flange Adapters
• Butterfly Valves
• Assembly Brackets
• Fixing Clips
101mm Stainless Steel Transair

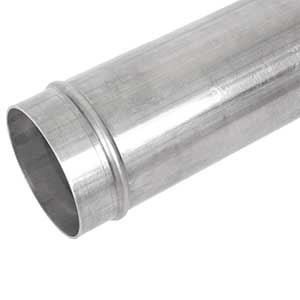

Stainless Steel Pipe

4" (101mm) Pipe - 20ft

Product #: TX16 L3 00
øD (in): 4
øD (mm): 101
L (ft): 20'
Weight (lb): 65.98
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3





➤ Back to Top

4" Connectors

90° Pipe to Pipe Elbows

Product #: RX02 L3 00
øD (in): 4
øD (mm): 101
Z (in): 10.94
Weight (lb): 3.13





➤ Back to Top

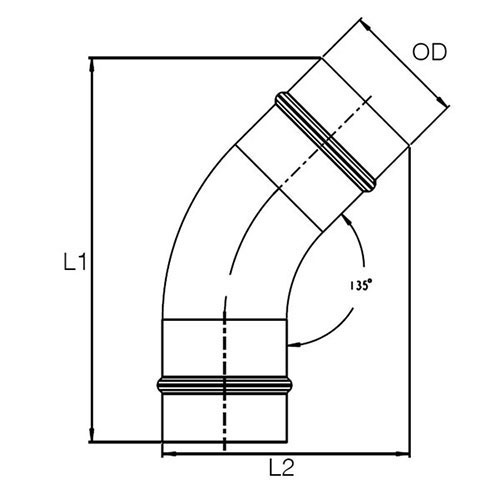

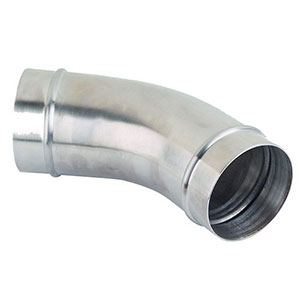

45° Pipe to Pipe Elbows

Product #: RX12 L3 00
øD (in): 4
øD (mm): 101
L1 (in): 10.69
L2 (in): 7.26
Weight (lb): 2.89





Use 2 connectors RR01 to connect elbow RX12 to Transair® stainless steel pipe.

➤ Back to Top

Reducing Tees

Product #: RX04 L3 L1
øD1 (in): 4
øD1 (mm): 101
øD2 (in): 3
øD2 (mm): 76
L (in): 12.20
Z1 (in): 6.10
Z2 (in): 7.68
Weight (lb): 1.64




Product #: RX04 L3 M4
øD1 (in): 4
øD1 (mm): 101
øD2 (in): 1½
øD2 (mm): 42
L (in): 12.20
Z1 (in): 6.10
Z2 (in): 7.68
Weight (lb): 1.68




Product #: RX04 L3 M6
øD1 (in): 4
øD1 (mm): 101
øD2 (in): 2
øD2 (mm): 60
L (in): 12.20
Z1 (in): 6.10
Z2 (in): 7.68
Weight (lb): 1.74





Use 2 connectors RR01 to connect reducing tee RX04 to Transair® stainless steel pipe Ø76 or Ø101 and 1 connector RP06 to connect to Transair® stainless steel pipe Ø42 or Ø60.
Female NPT Threaded Reducing Tees
Product #: RX20 L3N04*
øD (in): 4
øD (mm): 101
Thread Size (in): ¾
L (in): 12.28
Z1 (in): 6.10
Z2 (in): 2.98
Weight (lb): 3.45





➤ Back to Top

Equal Tees

Product #: RX04 L3 00
øD (in): 4
øD (mm): 101
L (in): 12.28
Z1 (in): 6.10
Z2 (in): 6.10
Weight (lb): 3.94





➤ Back to Top

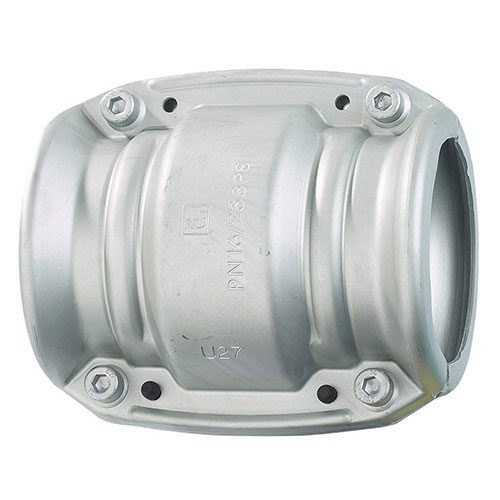

Pipe-to-Pipe Connectors (Unions)

Product #: RR01 L3 01
Seal: EPDM
øD (in): 4
øD (mm): 101
L (in): 5.75
Weight (lb): 3.27




Product #: RR01 L3 02
Seal: FKM
øD (in): 4
øD (mm): 101
L (in): 5.75
Weight (lb): 3.27





➤ Back to Top

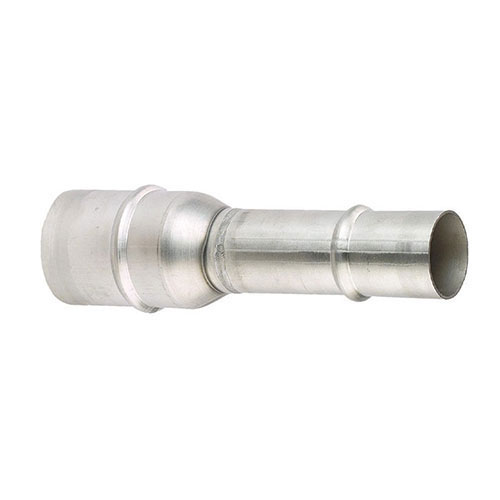

Plug-In Reducers

Product #: RX66 L3 L1
øD1 (in): 4
øD1 (mm): 101
øD2 (in): 3
øD2 (mm): 76
L (in): 7.56
Weight (lb): 1.55





Use a connector RR01 to connect plug-in reducer RX66 to Transair® stainless steel pipe Ø76 or Ø101
and a connector RP06 to connect to Transair® stainless steel pipe Ø60

➤ Back to Top

End Caps

Product #: RX25 L3 00
øD (in): 4
øD (mm): 101
L (in): 4.23
Weight (lb): 1.19





Use 1 connector RR01 to connect end cap RX25 to Transair® stainless steel pipe Ø76 or Ø101.

➤ Back to Top

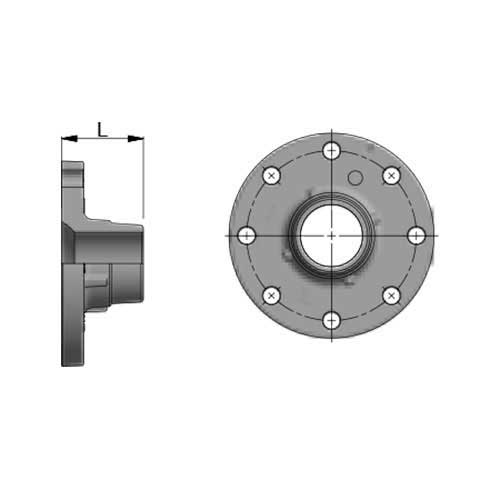

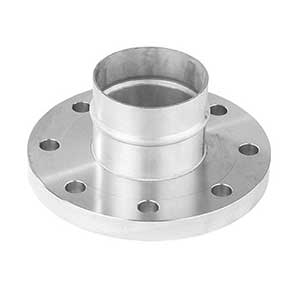

Flange Adapter

Product #: RX30 L3 00
øD (in): 4
øD (mm): 101
Standard: DIN
D1 (in): 8.66
D2 (in): 7.09
D3 (in): 0.71
L (in): 2.95
Weight (lb): 5.91




Product #: RX30 L1 00
øD (in): 4
øD (mm): 101
Standard: ANSI
D1 (in): 8.99
D2 (in): 7.50
D3 (in): 0.74
L (in): 2.95
Weight (lb): 9.76

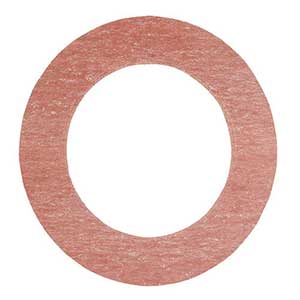

EPDM Gasket
Product #: EW05 L3 01
øD (in): 4
øD (mm): 101
For Use with: RX30 L3 00 & RX31 L3 00





BOLT KIT PART NO.: EW10 00 01 | MAX. TIGHTENING TORQUE (FT-LBS): 147.51

➤ Back to Top

Butterfly Valves

Product #: VR02 L3 01US
Seal: EPDM
Standard Flange: ANSI
øD (in): 4
øD (mm): 101
Number of Lugs: 8
Weight (lb): 9.48
Bolt part #: EW10 00 01
Flange part #: RX31 L3 00




Product #: VR02 L3 02US
Seal: FKM
Standard Flange: ANSI
øD (in): 4
øD (mm): 101
Number of Lugs: 8
Weight (lb): 9.48
Bolt part #: EW10 00 01
Flange part #: RX31 L3 00





EW06 bolt kits are not supplied for valve/flanges assembly. The butterfly valves do not require additional ring when connected to circular flanges
MAX. TIGHTENING TORQUE (FT-LBS): 36.88

➤ Back to Top

Fixture Accessories

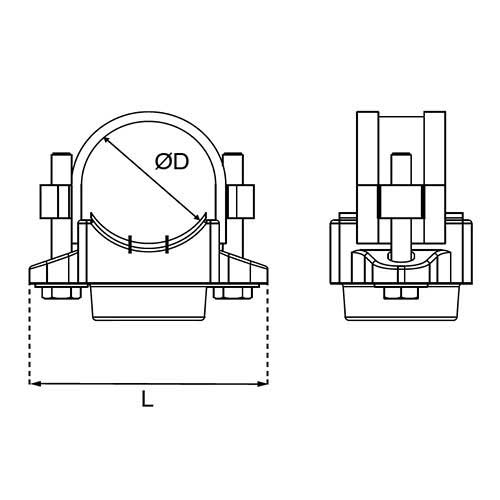

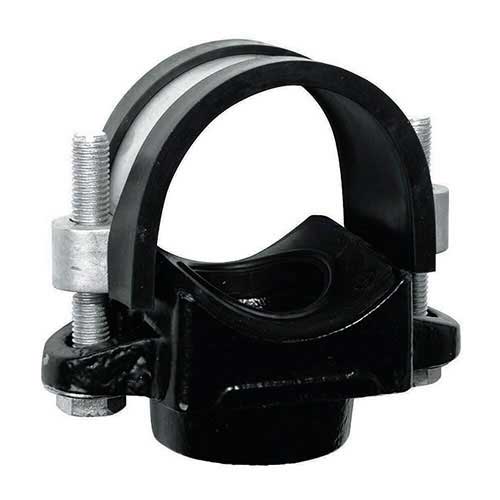

Quick Assembly Direct Feed Bracket

Product #: RR89 L3N08 01
Seal: EPDM
ØD (in): 4
ØD (mm): 101
L (in): 6.22
Weight (lbs): 4.33




Product #: RR89 L3N08 02
Seal: FKM
ØD (in): 4
ØD (mm): 101
L (in): 6.22
Weight (lbs): 4.33





➤ Back to Top

Fixing Clip for Stainless Steel Pipe

Product #: EX01 L3 00
ØD (in): 4
ØD (mm): 101
Thread Size (in): 3⁄8"-16
Max admitted static load: 200 daN




Product #: ER01 L3 00
ØD (in): 4
ØD (mm): 101
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN





➤ Back to Top
