Transair® Aluminum Pipe and Fittings
Diameter: 6"(168mm)

TransairPipeSales.com is your complete source for Transair 6" Pipe and Fittings. Transair® 6" Pipe and fittings are quick and easy to install.

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
168mm Transair

6" Aluminum Pipe


Blue Aluminum Pipe - 20ft

Product #: TA16 L8 04
øD (in): 6
øD (mm): 168
L (ft): 20'
Weight (lb): 64.84

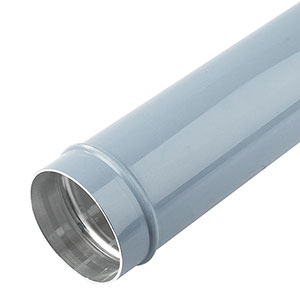

Gray Aluminum Pipe - 20ft

Product #: TA16 L8 06
øD (in): 6
øD (mm): 168
L (ft): 20'
Weight (lb): 64.84

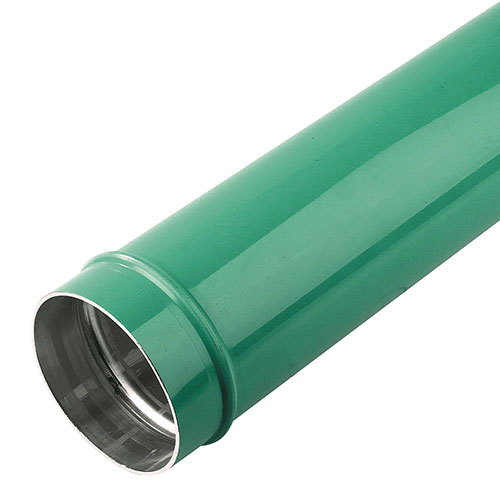

Green Aluminum Pipe - 20ft

Product #: TA16 L8 02
øD (in): 6
øD (mm): 168
L (ft): 20'
Weight (lb): 64.84





Back to Top

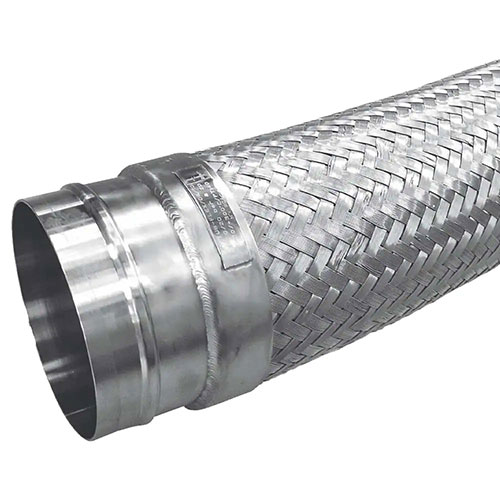

Flexible Hose

Product #: FX01 L8 02
OD (in): 6
OD (mm): 168
ID (in): 5 29⁄32
ID (mm): 150
L (ft): 10’ 6"
MIN. BEND RADIUS (in): 35
For Use w/ Pipe Diameter(in): 6"
Quick Ship: No





Back to Top

6" Connectors


90° Pipe to Pipe Elbows

Product #: RA02 L8 00
øD (in): 6
øD (mm): 168
L (in): 10.59
Z (in): 7.28
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect 90° elbow to Transair® pipe.

Back to Top

45° Pipe to Pipe Elbows

Product #: RA12 L8 00
øD (in): 6
øD (mm): 168
L (in): 11.57
Z (in): 5.39
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect 45° elbow to Transair® pipe


Back to Top

Equal Tees

Product #: RA04 L8 00
øD (in): 6
øD (mm): 168
L (in): 14.17
Z1 (in): 7.09
Z2 (in): 7.28
Quick Ship: No
3D   View/Download
CAD File





Use three connectors (RR01) to connect equal tees to Transair® pipe.

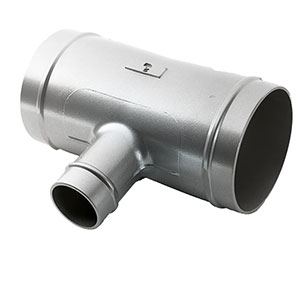

Reducing Tees
Product #: RA04 L8 63
øD (in): 6
øD (mm): 168
øD2 (in):
øD2 (mm): 63
L (in): 14.17
Z1 (in): 7.09
Z2 (in): 8.66
Quick Ship: No
3D   View/Download
CAD File




Product #: RA04 L8 L1
øD (in): 6
øD (mm): 168
øD2 (in): 3
øD2 (mm): 76
L (in): 14.17
Z1 (in): 7.09
Z2 (in): 7.28
Quick Ship: No
3D   View/Download
CAD File




Product #: RA04 L8 L3
øD (in): 6
øD (mm): 168
øD2 (in): 4
øD2 (mm): 101
L (in): 14.17
Z1 (in): 7.09
Z2 (in): 7.28
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect reducing tees (RA04) to Transair® Ø 6" pipes and use
one connector (6606) to connect Transair® Ø 2 1/2" pipes.


Back to Top

Equal Crosses

Product #: RA07 L8 00
øD (in): 6
øD (mm): 168
L (in): 15.04
Z (in): 7.52
Quick Ship: No
3D   View/Download
CAD File





Use four connectors (RR01) to connect equal crosses (RA07 L8 00) to Transair® Ø 6" pipes.

Back to Top

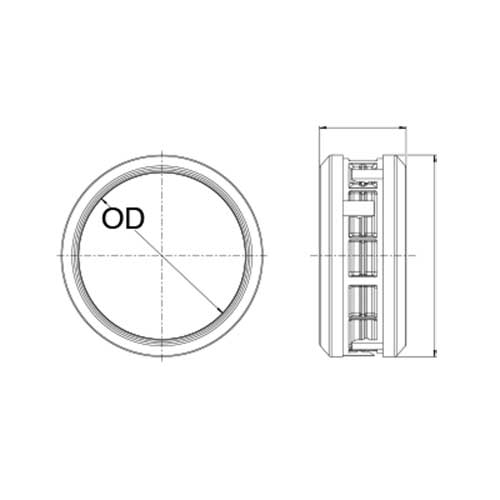

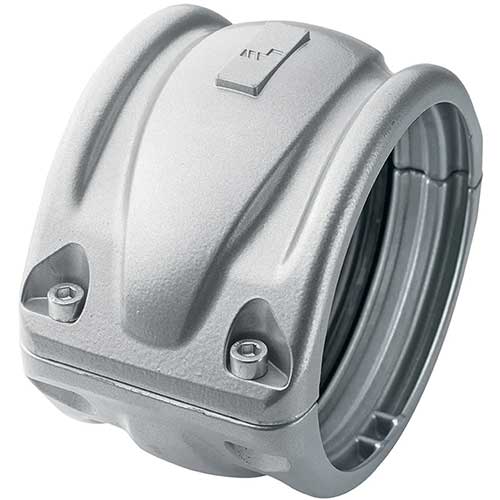

Pipe-to-Pipe Connectors (Union Clamp - Includes Cartridge)

Product #: RR01 L8 00
øD (in): 6
øD (mm): 168
L (in): 5.47
Quick Ship: No
3D   View/Download
CAD File




Union Clamp Replacement Cartridge
Product #: RP00 L8 00
øD (in): 6
øD (mm): 168
Quick Ship: No





Back to Top

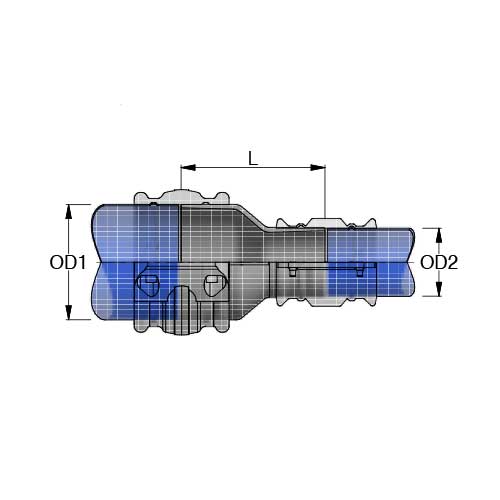

Plug-In Reducer

Product #: RA66 L8 L1
øD (in): 6
øD (mm): 168
øD2 (in): 3
øD2 (mm): 76
L (in): 8.27
Quick Ship: No
3D   View/Download
CAD File




Product #: RA66 L8 L3
øD (in): 6
øD (mm): 168
øD2 (in): 4
øD2 (mm): 101
L (in): 8.27
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect plug-in reducers (RA66) to Transair® pipe.

Back to Top

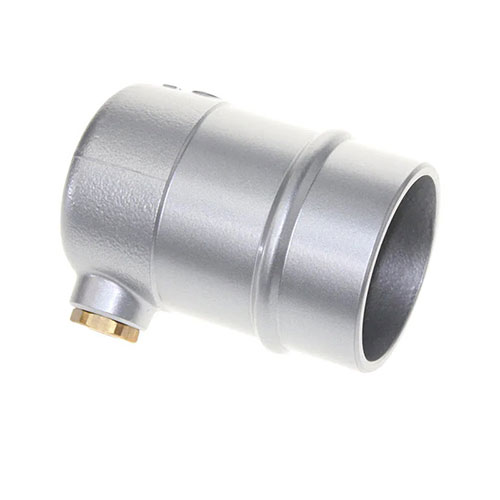

End Cap with Plug

Product #: RA25 L8 04
øD (in): 6
øD (mm): 168
L (in): 4.56
Z (in): 3.21
Quick Ship: No
3D   View/Download
CAD File





Supplied with a ½" BSP threaded plug
Use one connector (RR01) to connect end caps to Transair pipe.


Back to Top

Flanged Connectors

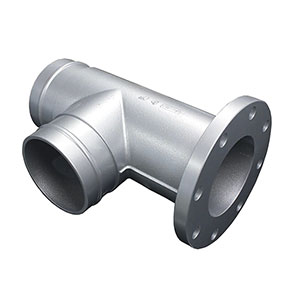

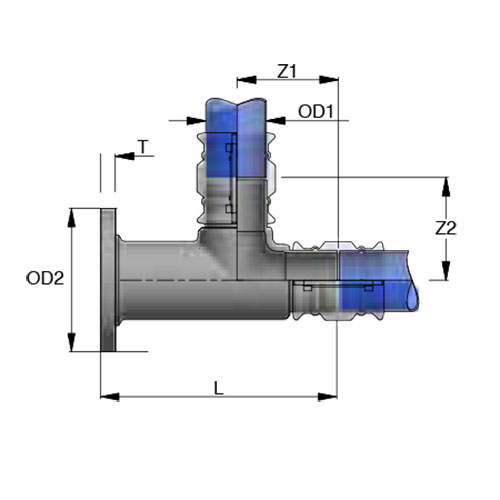

1 Flanged Tee
Product #: RA44 L8 00 46
OD1 (in): 6
OD1 (mm): 168
Flange Size (in): 6
OD2 (in): 11.02
T (in): 1.03
L (in): 17.67
Z1 (in): 7.52
Standard: ANSI
3D   View/Download
CAD File





Use two connectors (RR01) to connect 1 flanged tees to Transair® pipe.
3 Flanged Cross
Product #: RA07 L8 03 46
OD1 (in): 6
OD1 (mm): 168
Flange Size (in): 6
OD2 (in): 11.02
T (in): 1.03
L (in): 20.29
Z1 (in): 10.15
Z2 (in): 7.52
Standard: ANSI
3D   View/Download
CAD File





Use one connector (RR01) to connect 3 flanged crosses to Transair® pipe.

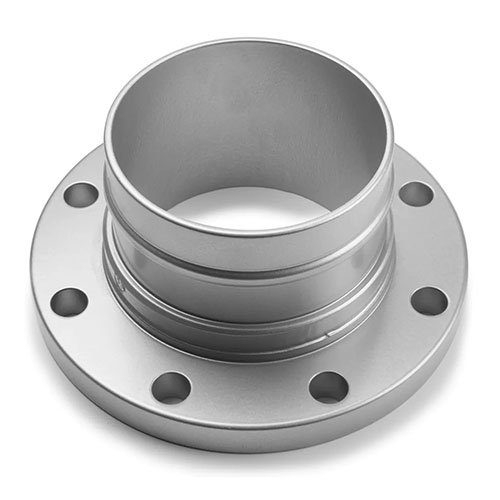

Flange Adapter – ANSI
Product #: RA31 L8 00
OD1 (in): 6
OD1 (mm): 168
DN: 150
NO. of Bolt Holes: 8
L (in): 5.02
T (in): 1.00
D (in): 9.45
Quick Ship: No
3D   View/Download
CAD File





Use one connector (RR01) to connect flanges to Transair Ø 6" pipes.

Back to Top

Y Connectors

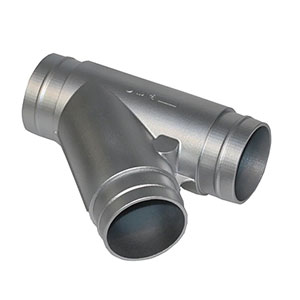

Equal Y
Product #: RA26 L8 00
OD1 (in): 6
OD1 (mm): 168
L (in): 18.74
Z1 (in): 4.96
Z2 (in): 13.78
Quick Ship: No
3D   View/Download
CAD File





Use three connectors (RR01) to connect equal Y to Transair® Ø 6" pipes.
Reducing Y
Product #: RA26 L8 L3
OD1 (in): 6
OD1 (mm): 168
OD2 (in): 4
OD2 (mm): 101
L (in): 15.44
Z1 (in): 3.39
Z2 (in): 12.05
Z3 (in): 12.99
3D   View/Download
CAD File





Use three connectors (RR01) to connect reducing Y to Transair® Ø 6" pipes.

Back to Top

Female Threaded NPT Saddle Reducing Bracket

Product #: RR63 L8N12
OD (in): 6
OD (mm): 168
THD Size 1 (in): 1-½
THD Size 2 (in): 16
L (in): 9 ¼
Quick Ship: No




Product #: RR63 L8N16
OD (in): 6
OD (mm): 168
THD Size 1 (in): 2
THD Size 2 (in): 16
L (in): 9 ¼
Quick Ship: No





Back to Top

6" Valves

Ball Valve
Product #: VR01 L8 00
ØD(in): 6
ØD(mm): 168
DN: 150
L (in): 20.47
Z (in): 8.27
D (in): 9.51
Number Of Bolt Holes: 8
Quick Ship: No





Flange Part NO. (RA31 L8 00) | Gasket Part NO. (EW05 L8 00) | Bolt Kit Part NO. (EW10 00 16US) | MAX. Tightening Torque(FT-LBS): 147

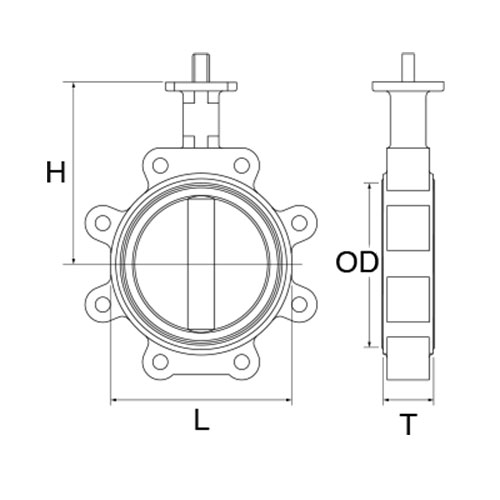

Butterfly Valve
Product #: VR02 L8 00US
ØD(in): 6
ØD(mm): 168
Flange Std: ANSI
DN: 150
D (in): 9.50
THD Size (UNC-2B): 3/4 - 10
Number Of Bolt Holes: 8
L (in): 8.07
H (in): 8.07
T (in): 2.12
Quick Ship: No




Not supplied with handle or bolt kit
Flange Part NO. (RA31 L8 00) | Bolt Kit Part NO. (EW10 00 02) | MAX. Tightening Torque(FT-LBS): 147 | Max. Pressure: 175 PSI (12 bar)

Back to Top

6" Rubber Insulated Pipe Hangers

Product #: ER01 L8 00
ØD(in): 6
ØD(mm): 168
THD Size (in): 3⁄8-16 UNC
Quick Ship: No
3D   View/Download
CAD File






Back to Top
