Transair Installation Tools and Tool Kits

Transair Installation Tools make installing or modifying a Transair system easier. With our range of pipe cutters, drill bits, deburring tools, and crimping tools all diameters, 1/2" (16.5mm) to 8" (220mm), can be installed six times faster than the traditional options of copper and steel. The Transair tools are easy to operate and built to provide years of dependable service.


Note: California residents click here for Proposition 65 information

WARNING: This product (6698 02 02, 6698 02 01) can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer.
WARNING: This product (EW09 00 22, 6698 04 02) can expose you to chemicals including Carbon black (airborne, unbound particle which is known to the State of California to cause cancer.
WARNING: This product (6698 03 01, 6698 01 03, EW09 00 30, 6698 04 01, EA98 06 00, EW02 L1 00, EW02 L3 00) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Tool Case

This tool case simplifies the use and transportation of tools. It contains all the tools necessary for completing an installation.

Includes:
• 6698 01 03 Drilling Jig
• 6698 02 01 and 6698 02 02 Drilling Tools
• 6698 03 01 Rigid Pipe Cutter
• 6698 04 01 Chamfer Tool
• 6698 04 02 Deburring Tool
• 6698 05 03 Set of Tightening Spanners
• 6698 04 03 Marking Tool

Product #: 6698 00 05
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: ½"(16.5mm) to 2½"(63mm)
Quick Ship: Yes

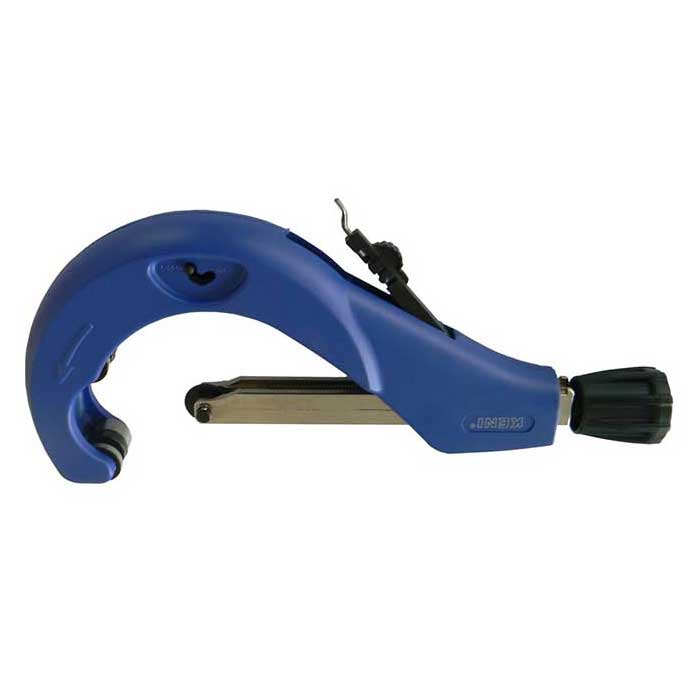

Pipe Cutter

Pipe Cutter
Click For Larger View
Product #: 6698 03 01
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: ½"(16.5mm) to 3"(76mm)
Quick Ship: Limited





Spare rotary cutter blade EW08 00 99 for Transair cutter 6698 03 01

Pipe Cutter
Click For Larger View
Product #: EW08 00 03
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 4"(101mm) to 6"(168mm)
Quick Ship: Limited





Spare rotary cutter blade EW08 00 04 for Transair cutter EW08 00 03

Drilling Jig

Drilling Jig
Click For Larger View
Product #: 6698 01 03
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: ½"(16.5mm) to 2½"(63mm)
Quick Ship: Limited





Drilling Tool

6698-02-02

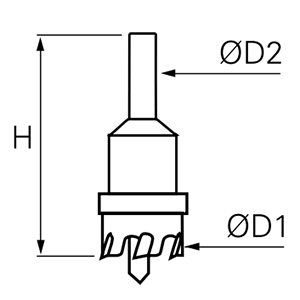

6698-02-02 Dimensions
Product #: 6698 02 02
ØD1 (in): 5⁄8
ØD1 (mm): 16
ØD2 (in): 7⁄16
ØD2 (mm): 11
H (in): 2 7⁄8
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 1" (25mm)
Quick Ship: Limited





Drilling tool 6698 02 02 is required to install 1" Transair brackets. Can be used with all types of drills.

6698-02-01
6698-02-01 Dimensions
Product #: 6698 02 01
ØD1 (in): 1
ØD1 (mm): 22
ØD2 (in): ½
ØD2 (mm): 13
H (in): 2 ¾
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 1½"(40mm) to 2½"(63mm)
Quick Ship: Limited





Drilling tool 6698 02 01 is required to install 1 ½" and 2 ½" Transair brackets.
It is also used to create the two holes needed for double-clamp ring connectors when cutting to length 2 ½" Transair pipe.

EW09-00-64
EW09-00-64 Dimensions
Product #: EW09 00 22
ØD1 (in): 1
ØD1 (mm): 22
ØD2 (in): ½
ØD2 (mm): 13
H (in): 2 ¾
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 1½"(40mm) to 2½"(63mm)
Quick Ship: Limited





Drilling tool EW09 is required to install Transair direct feed brackets. After drilling, it is important to deburr and clean the pipe

EW09-00-64
EW09-00-64 Dimensions
Product #: EW09 00 30
ØD1 (in): 1 3⁄16
ØD1 (mm): 30
ØD2 (in): ½
ØD2 (mm): 13
H (in): 2 ¾
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 3"(76mm) to 4"(101mm)
Quick Ship: Limited





Drilling tool EW09 is required to install Transair direct feed brackets. After drilling, it is important to deburr and clean the pipe

EW09-00-64
EW09-00-64 Dimensions
Product #: EW09 00 51
ØD1 (in): 2
ØD1 (mm): 50
ØD2 (in): ½
ØD2 (mm): 13
H (in): 2 ¾
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 6"(168mm)
Quick Ship: No





Drilling tool EW09 is required to install Transair direct feed brackets. After drilling, it is important to deburr and clean the pipe

EW09-00-64
EW09-00-64 Dimensions
Product #: EW09 00 64
ØD1 (in): 2 ½
ØD1 (mm): 63
ØD2 (in): ½
ØD2 (mm): 13
H (in): 2 ¾
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 6"(168mm)
Quick Ship: No





Drilling tool EW09 is required to install Transair direct feed brackets. After drilling, it is important to deburr and clean the pipe

Deburring Tool

Deburring Tool
Click For Larger View
Product #: 6698 04 02
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: ½"(16.5mm) to 6"(168mm)
Quick Ship: Limited





Chamfer Tool

Chamfer Tool Click For Larger View
Product #: 6698 04 01
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: ½"(16.5mm) to 1½"(40mm)
Quick Ship: Limited





Marking Tool

Marking Tool Click For Larger View
Product #: 6698 04 03
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: ½"(16.5mm) to 1½"(40mm)
Quick Ship: Limited





Spanner Wrenches

Spanner Wrenches
Click For Larger View
Product #: 6698 05 03
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 2"(50mm) to 2½"(63mm)
Quick Ship: Limited





Pressurized System Drilling Tool

Pressurized System Drilling Tool Click For Larger View
Product #: EA98 06 00
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 1"(25mm) to 2½"(63mm)
Quick Ship: No





Portable Crimping Tool Kit

Portable Crimping Tool Kit Click For Larger View
Product #: EW01 00 02
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 3"(76mm) to 6"(168mm)
Quick Ship: No





Jaws for Portable Crimping Tool

Jaws for Portable Crimping Tool Click For Larger View
Product #: EW02 L1 00
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 3"(76mm)
Quick Ship: No




Jaws for Portable Crimping Tool Click For Larger View
Product #: EW02 L3 00
Used for Transair Pipe Range: Aluminum & Stainless Steel
Used for Pipe Sizes: 4"(101mm)
Quick Ship: No




Jaws for Portable Crimping Tool Click For Larger View
Product #: EW02 L8 00
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 6"(168mm)
Quick Ship: No

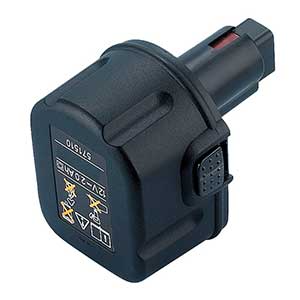

14V Battery for Portable Crimping Tool

14V Battery for Portable Crimping Tool Click For Larger View
Product #: EW03 00 01
Used for Transair Pipe Range: Aluminum & Stainless Steel
Volts: 14
Quick Ship: No





Pipe Cutter for 8" Pipe

Pipe Cutter for 8 Inch Pipe Click For Larger View
Product #: EW08 00 V3
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Quick Ship: No





Replacement Blades for 8" Pipe Cutter

Replacement Blades for 8 Inch Pipe Cutter Click For Larger View
Product #: EW08 00 ALUS
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Replacement For: EW08 00 V3
Quick Ship: No

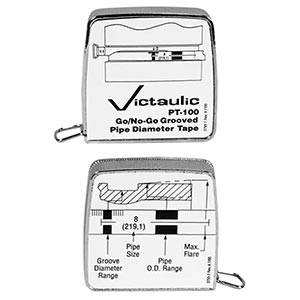

Groove Depth Measuring Tape for 8" Pipe

Groove Depth Measuring Tape Click For Larger View
Product #: 6698 V1203
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Quick Ship: No

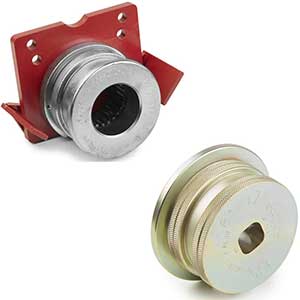

Dies for Roll Groover for 8" Pipe

Dies for Roll Groover Click For Larger View
Product #: EW02 V1200
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Quick Ship: No





Lubricant for 8" Pipe

Lubricant for 8 inch pipe Click For Larger View
Product #: 6698 V1201
Container Sizes: Quart
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Quick Ship: No




Lubricant for 8 inch pipe Click For Larger View
Product #: 6698 V1202
Container Sizes: Pint
Used for Transair Pipe Range: Aluminum
Used for Pipe Sizes: 8"(220mm)
Quick Ship: No

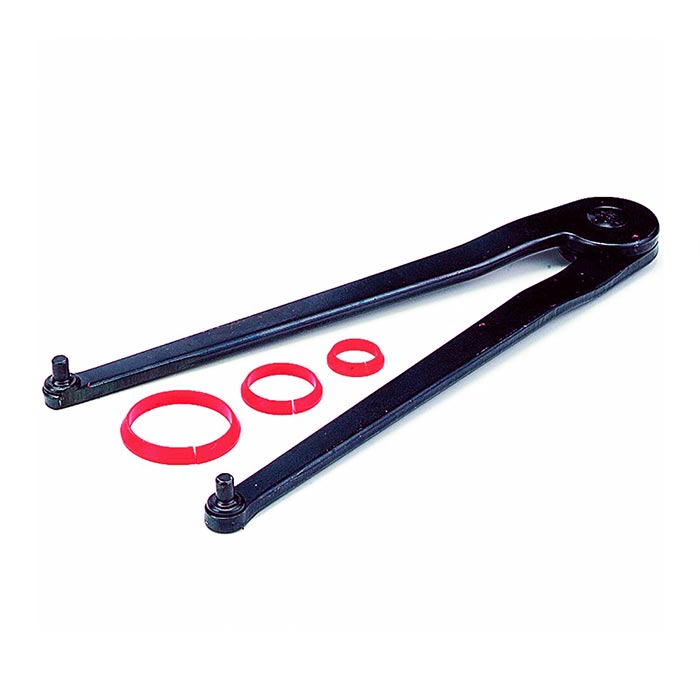

Dismounting Tool

Dismounting Tool Click For Larger View
Product #: EW11 00 01
Used for Transair Pipe Range: Stainless Steel
Used for Pipe Sizes: ¾"(22mm) to 1"(28mm)
Quick Ship: No





Dismounting Tool (Includes: One(1) Key, Five(5) 3/4" Dismounting Rings, and Five(5) 1" Dismounting Rings)

Maintenance Set

Maintenance set Click For Larger View
Product #: EW10 N7 01
Used for Transair Pipe Range: Stainless Steel
Seal: EPDM
ØD (in): ¾
ØD (mm): 22
Quick Ship: No




Maintenance set Click For Larger View
Product #: EW10 N9 01
Used for Transair Pipe Range: Stainless Steel
Seal: EPDM
ØD (in): 1
ØD (mm): 28
Quick Ship: No




Maintenance set Click For Larger View
Product #: EW10 N7 02
Used for Transair Pipe Range: Stainless Steel
Seal: FKM
ØD (in): ¾
ØD (mm): 22
Quick Ship: No




Maintenance set Click For Larger View
Product #: EW10 N9 02
Used for Transair Pipe Range: Stainless Steel
Seal: FKM
ØD (in): 1
ØD (mm): 28
Quick Ship: No
