Fixture Accessories
Diameter: 1/2" to 6" (16.5mm to 168mm)TransairPipeSales.com is your complete source for Transair fixture accessories. Transair Fixture Accessories are quick and easy to install.
Click Here for Technical Data
Note: California residents click here for Proposition 65 information
WARNING: This product (ER01 L1 00, ER01 L3 00, ER01 L8 00, EX01 L1 00, EX01 L3 00) can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer.
WARNING: This product (6699 01 01) can expose you to chemicals including Carbon black (airborne, unbound particle which is known to the State of California to cause cancer.
WARNING: This product (6697 17 01, 6697 25 01, 6697 40 01, 6697 50 01, 6697 63 01, 6697 00 03, 0169 00 05 00) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
WARNING: This product (6699 01 01) can expose you to chemicals including Carbon black (airborne, unbound particle which is known to the State of California to cause cancer.
WARNING: This product (6697 17 01, 6697 25 01, 6697 40 01, 6697 50 01, 6697 63 01, 6697 00 03, 0169 00 05 00) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298
Request A Quote!
Product Features:
■ Easy adaptation for all pipe work configurations
■ For suspension of pipes, from walls, partitions, beams, cable trays, Canalis electrical installations, etc, vertically or horizontally
■ Non-flammable (conforms to UL94V-2 standard)
■ Transair® fixing clips are designed to bear a maximum weight of 44lbs. However, to ensure good stability of the system, we recommend the use of at least two clips per pipe i.e.:
• Maximum 5 ft space between clips for 9 ft lengths of pipe
• Maximum 10 ft space between clips for 20 ft lengths of pipe

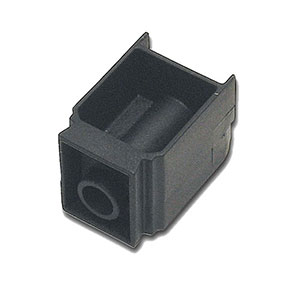

Spacer
Click For Larger View
Click For Larger View
Product #: 6697 00 03
øD (in): 7⁄16
øD (mm): 11
H (in): 2
H1 (in): 1¾
K (in): 13⁄8
L (in): 13⁄16
Quick Ship: Limited
øD (in): 7⁄16
øD (mm): 11
H (in): 2
H1 (in): 1¾
K (in): 13⁄8
L (in): 13⁄16
Quick Ship: Limited
 |
|||||
 |
|||||

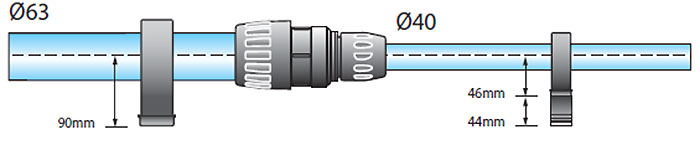

This spacer, in association with a Transair® pipe clip, allows consistent alignment of pipes when different diameters of pipe are run concurrently in the same line.
➤ Back to Top

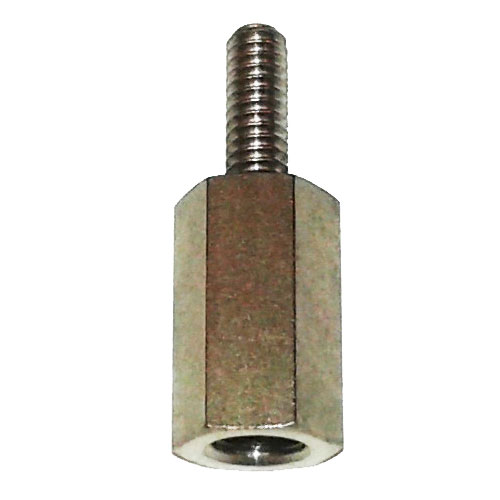

Threaded Rod Adapter
Click For Larger View
Click For Larger View
Product #: 0169 00 05 00
C (in): ¼
E (in): 5⁄8
H (in): 13⁄16
Quick Ship: Yes
C (in): ¼
E (in): 5⁄8
H (in): 13⁄16
Quick Ship: Yes
|
|||||
|
|||||
The use of this adapter facilitates the suspension of Transair® with 3⁄8" threaded rod.
➤ Back to Top

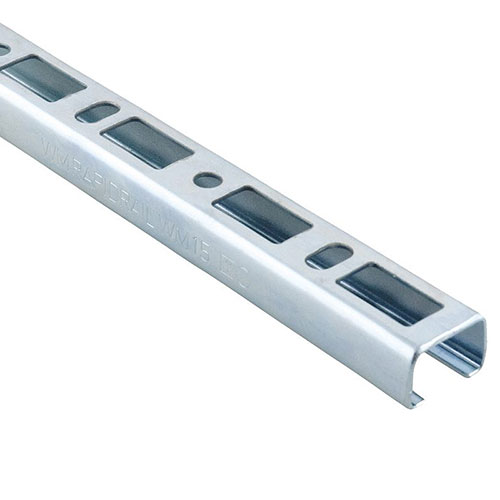

U-Channel for Pipe Diameters 1/2" to 2-1/2"
Click For Larger View
Click For Larger View
Product #: 6699 01 01
H (in): 13⁄16
L (ft): 6' 5"
L1 (in): 13⁄16
Quick Ship: Limited
H (in): 13⁄16
L (ft): 6' 5"
L1 (in): 13⁄16
Quick Ship: Limited
|
|||||
|
|||||
➤ Back to Top

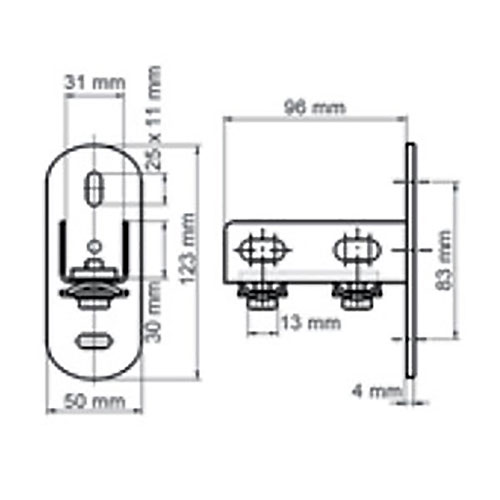

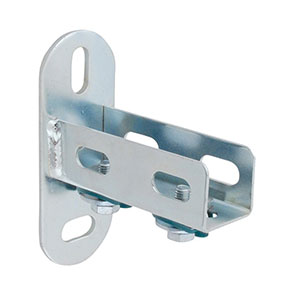

U-Channel Fixing Bracket for Pipe Diameters 1/2" to 2-1/2"
Click For Larger View
Click For Larger View
Product #: 6699 01 02
H (in): 43⁄16
L (in): 1½
Quick Ship: Limited
H (in): 43⁄16
L (in): 1½
Quick Ship: Limited
|
|||||
|
|||||
